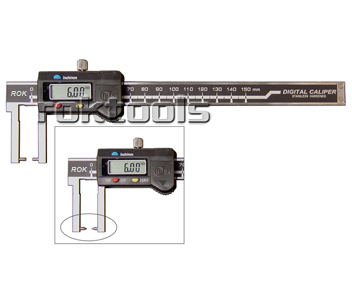

Outside Groove Digital Caliper Vernier With Cylinder Contact
Zoom Browse
Product Name: Outside Groove Digital Caliper Vernier With Cylinder Contact
Product Numbers: OGDC-10121A
Product Specifications: Range: 0-150mm 0-200mm 300mm
Product Unit: Range(in), 6 inch, 8inch, 12 inch
Product Remark: China Outside groove caliper
Product Class:Measuring Tools > Calipers > Outside Groove Caliper Vernier
Product Details
【DateTime:2014-08-30 Browse:】【Font: Big Mid Small】【Print】【Close】
Outside Groove Digital Caliper Vernier With Cylinder Contact
Part NO: OGDC-10121A
Measures external groves and recessed hub dimensions or curved surface.

Features:
--Tailor make products upon customers request.
--Power on/off  --Instant mm/inch conversion at any position
-- Zero-setting at any position
--Diameter of point : 2.5mm
--Power: LR44 or CR2032
Art No
Range(mm)
Accuracy
C
Diam of point
e
OGDC-10121A
0-150
0.03mm
40mm
2.5mm
5mm
OGDC-10122A
0-200
0.04mm
50mm
2.5mm
8mm
OGDC-10123A
0-300
0.05mm
60mm
2.5mm
10mm

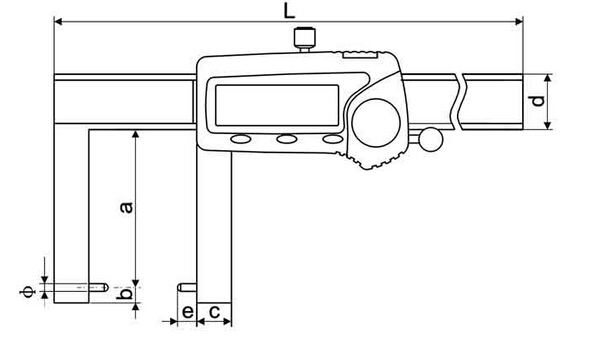

drawing
