Offset Vernier Caliper
Zoom Browse
Product Name: Offset Vernier Caliper
Product Numbers: OFDC-1201
Product Specifications: Range: 0-150mm/200mm/300mm/500mm
Product Unit: Resolution:0.02mm
Product Remark: Jaw can be moveable
Product Class:Measuring Tools > Calipers > Offest Calipers
Product Details
【DateTime:2014-06-03 Browse:】【Font: Big Mid Small】【Print】【Close

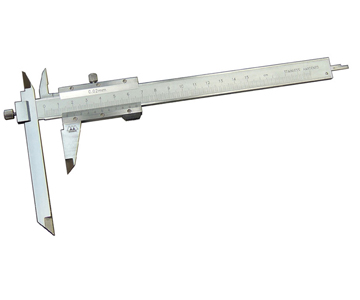

Offset Vernier Caliper
Part No: OFDC-1201
Features:
Made of Stainless Steel.
Hardened and ground
With moveable jaw can measure the stepped items by moving up and down.
Stain chrome plated surface
With locking screw for adjustable jaw
With 10mm width adjustable jaw
With 110-210mm length adjustable jaw to ensure most of complex stepped items.
With Depth Rod can measure the depth of hole.
Specification:
Part No
Range
Resolution
Accuracy
L
p
b
c
d
e
OFDC-1201
0-150mm/0-6
0.02mm
+/-0.04mm/0.0016
249
110
40
10
16
7
OFDC-1202
0-200mm/0-8
0.02mm
+/-0.04mm/0.0016"
299
120
50
10
16
7
OFDC-1203
0-300mm/0-12
0.02mm
+/-0.05mm/ 0.002
399
130
60
10
16
7
OFDC-1205
0-500mm/0-20
0.02mm
+/-0.07mm/0.0028
685
210
100
22
24
11


Note:
  •  The above-mentioned data only for reference, is it confirm standard spend, ask users to confirm the suitability of the products by oneself to act as
  •  We reserve the right to change the specification without notice.
