Heavy Duty Electronical Digital Caliper Raning 500mm-4000mm
Zoom Browse
Product Name: Heavy Duty Electronical Digital Caliper Raning 500mm-4000mm
Product Numbers: HD-5214
Product Specifications: 500mm, 800mm, 1000mm, 1500mm, 2000mm
Product Unit: With ABS function
Product Remark: Type IV with nib jaw Mitutoyos quality
Product Class:Measuring Tools > Calipers > Heavy Duty Calipers
Product Details
【DateTime:2015-07-24 Browse:】【Font: Big Mid Small】【Print】【Close

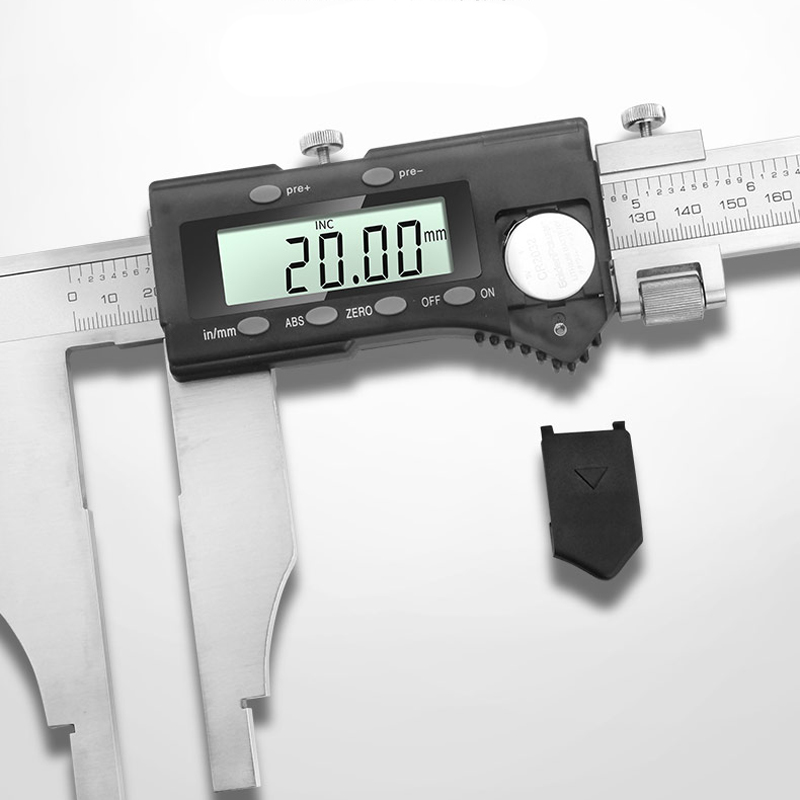

Heavy Duty Electronical Digital Caliper Raning 500mm-4000mm
      Roktools provide wide range of heavy duty digital caliper with long jaw.
Range: 500mm 600mm 800mm,1000mm, 1500mm, 2000mm, 2500mm, 3000mm, 3500mm, 4000mm
Features:
    Heavy duty beam with Extral thickness
    Stainless steel.
    Metric inch convertible at any position
    Packed with wooden box or plastic box.
    Stable and accuracy chips inside.
    Larger LCD display.
    With ABS function
    With Hold Function( above 1000mm)
Specifications:

ItemNo. Range(mm) Resolution (mm/in) A(mm) B(mm) C(mm) D(mm) Accuracy
Normal jaw Long jaw Normal jaw Long jaw
HD-5214 0-500/20" 0.01/0.0005" 100/125 150 10 12 25 +/-0 05mm +/-0.08mm
HD-6214 0-600/24" 0.01/0.0005" 100/125 150 10 12 25 +/-0.07mm +/-0.10mm
HD-8214 0-800/32" 0.01/0.0005" 125/150 200 20 18 32 +/-0.07mm +/-0.10mm
HD-10214 0-1000/40" 0.01/0.0005" 125/150 200 20 20 32 +/-0.07mm +/-0.10mm
HD-15214 0-1500/60" 0.01/0.0005" 125/150 200 20 20 41.5/52 +/-0.10mm +/-0.15mm
HD-20214 0-2000/100" 0.01/0.0005" 150 200/300 20 20 41.5/52 +/-0.14mm +/-0.20mm
HD-25214 0-2500/100" 0.01/0.0005" 150 200/300 20 20 52 +/-0.17mm +/-0.25mm
HD-30214 0-3000/120" 0.01/0.0005" 200 300 20 20 52 +/-0.20mm +/-0.30mm
HD-35214 0-3500/140" 0.01/0.0005" 200 300 20 20 52 +/-0.30mm +/-0.40mm
HD-40214 0-4000/160" 0.01/0.0005" 200 300 40 35 52 +/-0.34mm +/-0.45mm

OEM for different long jaw
We reserve the right to alter the specification and outside looking without notice in advace.

1500mm Digital Caliper
