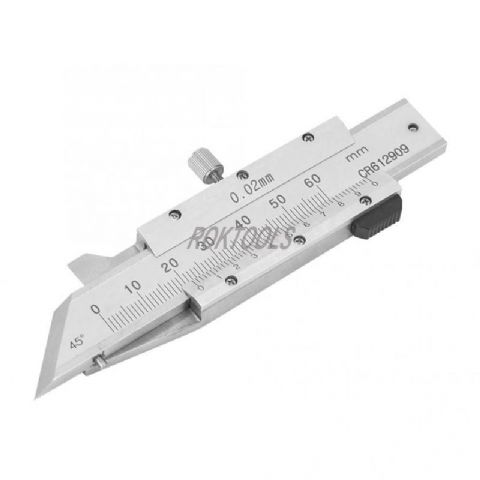

Vernier Chamfer Caliper Chamfer Gage
Features:
1. With 15°, 20°, 30° , 45° ,60° available.
2. Measuring rang: 0-6mm
3.Can measure workpiece of non-stain
4.Made of stainless steel
5.Satin chrome plated reading surface
6. The measurement result is accurate and the error is about ±0.06mm.
7. Resolution: 0.02mm
Application:
1. Machinery manufacturing
2. Glass processing
Chamfer Calipers are unique in the way they directly measure the top diameter of a tapered surface (Internal or External) without the need of a setting master.
|
Measuring Range
|
Model No.
|
Vernier Reading
|
Angles
|
|
0-6mm
|
CCDC-5002-15
|
0.02mm
|
15°
|
|
0-6mm
|
CCDC-5002-30
|
0.02mm
|
30°
|
|
0-6mm
|
CCDC-5002-45
|
0.02mm
|
45°
|
|
0-6mm
|
CCDC-5002-60
|
0.02mm
|
60°
|
