Electronic Digital Outside Caliper Gauge External Diameter
Zoom Browse
Product Name: Electronic Digital Outside Caliper Gauge External Diameter
Product Numbers: CG-32101
Product Specifications: 0-10mm 10-20mm
Product Unit: For accurate outside measurement
Product Remark: With rotatable display
Product Class:Measuring Tools > Caliper Gauges > Outside Caliper Gauge
Product Details
【DateTime:2021-09-07 Browse:】【Font: Big Mid Small】【Print】【Close

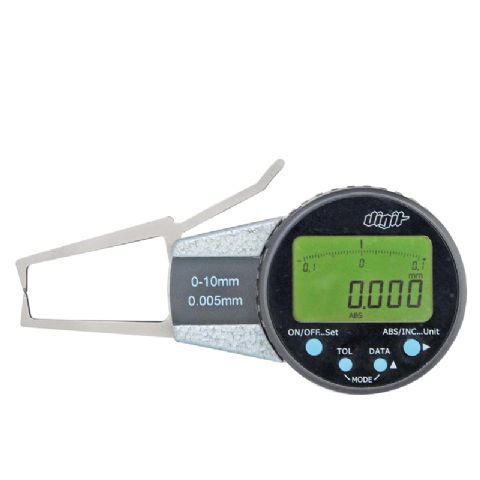

Electronic Digital Outside Caliper Gauge External Diameter

Features:

-For accurate outside measurement

-With rotatable display

-auto Power off

-Power consumption <50uA

-SPC (optional)

-ABS and Inc convertible.


Travel: 10mm
Order No. Range Accuracy Tip Size(mm) Tip Type(mm) Length of jaw (mm)
CG-31101 0-10mm 0.02mm 3*8 tip 40
CG-31102 10-20mm 0.02mm 3*8 tip 40
CG-31103 20-30mm 0.02mm 3*8 tip 40
CG-31104 30-40mm 0.02mm 3*8 tip 40
CG-31105 40-50mm 0.02mm 3*8 tip 40
CG-31106 0-10mm 0.02mm 3*8 ball 40
CG-31107 10-20mm 0.02mm 3*8 ball 40
CG-31108 20-30mm 0.02mm 3*8 ball
30
CG-31109 30-40mm 0.02mm 3*8 ball
40
CG-31110 40-50mm 0.02mm
3*8
Ball 40



Travel 20mm


Order No. Range Accuracy Tip Size Tip Type(mm) Length of jaw (mm)
CG-31201 0-20mm 0.03mm 6.5*25 tip 80
CG-31202 10-30mm 0.03mm 6.5*25 tip 80
CG-31203 20-40mm 0.03mm 6.5*25 tip 80
CG-31204 30-50mm 0.03mm 6.5*25 tip 80
CG-31205 40-60mm 0.03mm 6.5*25 tip 80
CG-31206 0-20mm 0.03mm 6.5*25 ball 80
CG-31207 10-30mm 0.03mm 6.5*25 ball 80
CG-31208 20-40mm 0.03mm 6.5*25 ball
80
CG-31209 30-50mm 0.03mm 6.5*25 ball
80
CG-31210
40-60mm 0.03mm
6.5*25
Ball 80
