Digital Bevel Box with V base and HOLD
Zoom Browse
Product Name: Digital Bevel Box with V base and HOLD
Product Numbers: BB-04V
Product Specifications: ±180.00°
Product Remark: V base
Product Class:Measuring Tools > Angle and Square > Bevel Box
Product Details
【DateTime:2010-11-24 Browse:】【Font: Big Mid Small】【Print】【Close

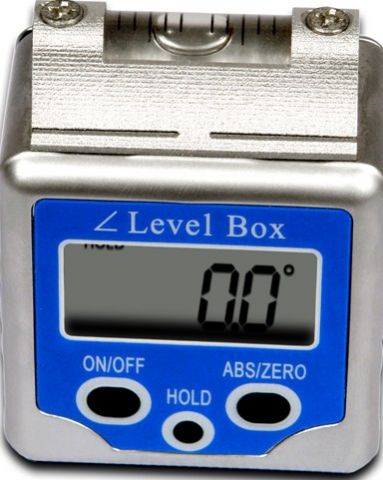

 Digital Bevel Box with V base and HOLD
ROK Bevel boxThe best  and  precise way to measure table saw blade angle, The Bevel Box is a universal angle gauge.Measure angles between -180° and +180° with this compact Digital Bevel Box. It features easy to read LCD, absolute/zero button, hold button, magnetic measuring surface and auto shutoff. Resolution is 0.1° , repeatability is ±0.1° and overall size is 2" x 2" x 1.3". Great for all machine set-ups.
ROK Bevel box Features:
1. V type base for easily sticking on round items like steel tube or other cylinder.
2. With Hold function to freeze the measurement.
3.  Whole metal shell (frame)
4.  Large LCD display.
5.  With high Accurracy Vial
6. Zero setting and with ABS funciton.
ROK Bevel Box package:
Size: 70mm*45mm*95mm
NW:  208g
GW: 260g
with battery , Instruction. Leather pouch.
