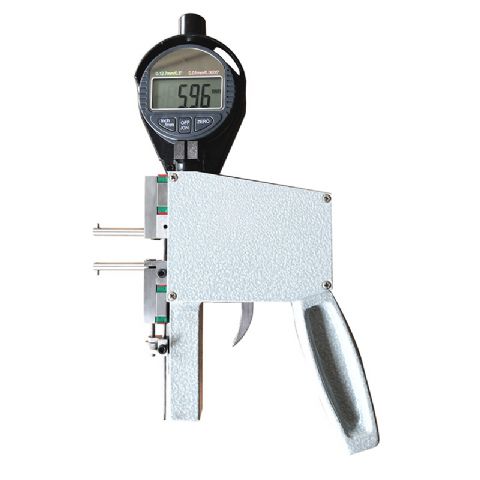

Pistol-grip Dial Indicator Groove Gauge
Zoom Browse
Product Name: Pistol-grip Dial Indicator Groove Gauge
Product Numbers: DI-80301
Product Specifications: Range: 30-150mm
Product Unit: Resolution: 0.01 or 0.001mm
Product Remark: Digital indicator or Dial Indicator
Product Class:Measuring Tools > Indicators Series > Special Indicators
Product Details
【DateTime:2018-09-29 Browse:】【Font: Big Mid Small】【Print】【Close】
Pistol-grip Dial Indicator Groove Gauge

Specification:

Type A: Flat measuring tips

Type B: Ball type measuring tips.

Travel of measuring: 10mm

Interchangeable rods: 30mm, 60mm, 80mm



Order NO. Range Resolution Accuracy Remarks
DI-80301 30-150mm 0.01mm 0.02mm Dial
DI-80302 30-150mm 0.001mm 0.01mm Dial
DI-80303 30-150mm 0.01mm 0.02mm Digital
DI-80304 30-150mm 0.001mm 0.01mm Digital
