Digital Indicator
Zoom Browse
Product Name: Digital Indicator
Product Numbers: EDI-101
Product Specifications: 0-12.5mm
Product Remark: 330°Rotatable display
Product Class:Measuring Tools > Indicators Series > Digital Indicators
Product Details
【DateTime:2008-11-27 Browse:】【Font: Big Mid Small】【Print】【Close

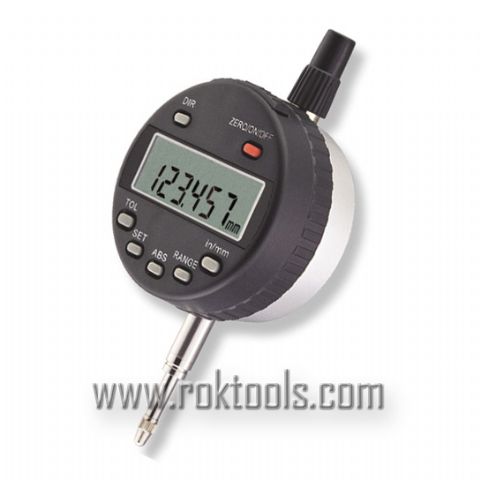

Digital Indicator
With the advent of electronics and LCDs the clock face and analog display has been replaced with digital displays, these have the added advantage of sometimes being able to record and transmit the data electronically to a computer. This process is known as statistical process control(SPC) and involves a computer recording and interpreting the results, this also reduces the risk of the operator introducing recording errors. Digital indicators can also be switched between imperial and metric units with the press of a button, thereby increasing the DTIs versatility.
Order No
EDI-101
Range
0-12.5mm(0-0.50")
Resolution
0.01mm/0.0005"
 Accuracy
 ≤0.020mm/0.0008"
Max.response speed
1000mm/s
Max.Measuring Force
≤1.2N
Display
LCD6-digit Display
Power Souce
1.55V SR44  1pcs
Operating Teperature
0-+40oC
Relative humidity
≤80%
Storage Temperature
-20-+70oC
Remarks
