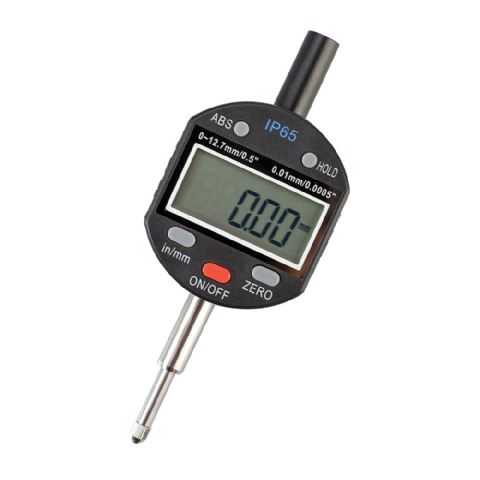

IP65 digital dial indicator 0.01mm dial gauge cnc accessories
The EDI-321 series is high end accuracy indicator developed by ROK International Industry. With Glass sensor and precision mechanical parts, It alway provide exact data you need. The indicator can be fixed on the lathe by magnetic stand. The EDI-321 is water oil proof preventing dust, oil, water into the gauge. The stem or frame body are well sealed to prevent liquid;
Features:
-Large LCD display
-ABS/PRESET function
-ZERO/ON Button
-Low-voltage Alarm
-Auto power off
-Glass sensor
-Metric and inch convertible
-The main frame is made of aero-metal
-Top Quality in China
-Preset function
Specification:
-Power: 3V Li-Battery CR2032
-Working Temperature: 0 ~ 40°
-Data Output: RS232 Transit
-Storeage Temperature: -10°~ 60°
-Range: 0-12.7mm, 0-25.4mm, 0-30mm, 0-50.4mm
|
Order No.
|
Range(mm)
|
Resolution(mm)
|
Accuracy(mm)
|
Remark
|
|
EDI-90201
|
0-12.7
|
0.01
|
0.02
|
IP65
|
|
EDI-90202
|
0-25.4
|
0.01
|
0.02
|
IP54
|
|
EDI-90203
|
0-30
|
0.01
|
0.02
|
IP54
|
|
EDI-90204
|
0-50.4
|
0.01
|
0.02
|
IP54
|
