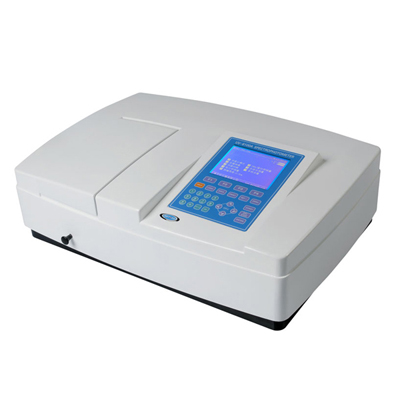

Large LCD Scanning UV/VIS Spectrophotometers
Zoom Browse
Product Name: Large LCD Scanning UV/VIS Spectrophotometers
Product Numbers: SPEC-20061
Product Specifications: Stray Light: ≤0.05%T @ 220nm,360nm
Product Unit: Printer Port: Parallel Port
Product Remark: Real-time clock for date and time stamping of results
Product Class:Measuring and Testing Instruments > Optical Instruments > Spectrophotometers
Product Details
【DateTime:2015-05-22 Browse:】【Font: Big Mid Small】【Print】【Close
Large LCD Scanning UV/VIS Spectrophotometers
Features
  ※ The innovative optical layout and state of art mono-chromator with high grade blazed holographic grating ensure accuracy. Its integrated design assures long term stability and durability.
  ※ The precisely aligned detector and quality deuterium and halogen lamps enhance the precision across the UV/vis spectrum starting from 190nm and into the near-infrared 1100nm.
  ※ Online software upgrade capability via Internet(for stand-alone models)
  ※ Full A4 print-out of graphs and tables of results with popular inexpensive printers such as HP or Epson Deskjet.
  ※ Real-time clock for date and time stamping of results
  ※ Large LCD display (320*240 Dots Matrix)

Specifications:

Wavelength Range 190-1100nm
 Bandwidth 1.8nm
 Wavelength Accuracy ±0.3nm
 Wavelength Repeatability 0.2nm
 Photometric Accuracy ±0.3%T
 Photometric Repeatability 0.2%T
 Photometric Range -0.3-3A,0-200%T,0-9999C
 Stability ± 0.002A/h @ 500nm
 Baseline Flatness ± 0.001A/h
 Noise  ± 0.001A/h
 Stray Light ≤0.05%T @ 220nm,360nm
 Data Output Port USB
 Printer Port Parallel Port
 Display 320*240 Dots LCD
 Lamps D2  Lamp & W  Lamp
 Detector Silicon Photodiode
 Power Requirements AC   220V/50Hz or  110V/60Hz
 Dimension 625*430*206mm
 Weight 28kg
