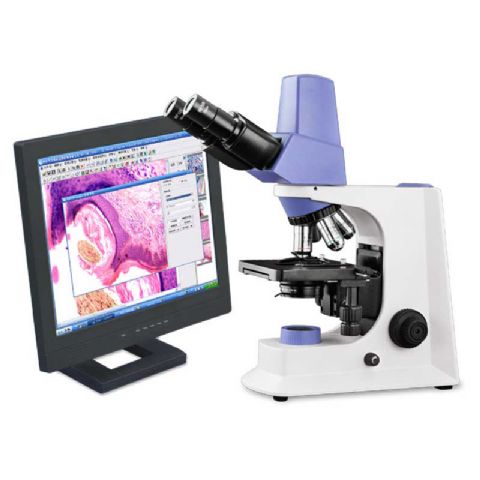

Moisture Proof Biological Microscope CMOS Color Sequential Scanning
Zoom Browse
Product Name: Moisture Proof Biological Microscope CMOS Color Sequential Scanning
Product Numbers: BIMI-21553
Product Specifications: Light distribution 20:80
Product Unit: Abbe N.A. 1.25(Iris Diaphragm)
Product Remark: USB2.0 connection without external power supply
Product Class:Measuring and Testing Instruments > Optical Instruments > Microscope
Product Details
【DateTime:2020-01-04 Browse:】【Font: Big Mid Small】【Print】【Close

Moisture Proof Biological Microscope CMOS Color Sequential Scanning

Characteristics

● Dustproof, moisture-proof, built-in chip.

● Light distribution 20:80, eyepiece observation synchronized with digital imaging without switching.

● Built-in 3MP/5MP digital camera system,1/2’’CMOS color sequential scanning.

● USB2.0 connection without external power supply.

● Available for WINDOWS system.


Specification:

Items

Specification

BIMI-21553

BIMI-21555

Eyepiece

WF 10X-20mm

●●

●●

Infinity EPlan Objective

4X

10X

40X/0.65 (S)

100X/1.25 (Oil) (S)

Seidentopf Binocular Head

Inclined 30°,Rotatable 360°,Interpupilary Distance:  50-75mm

Nosepiece

Quadplex

Mechanical Stage

Stage Size: 145mm×140mm
Travel: 76mm×52mm, Scale: 0.1mm,Two Slide Holder

Condenser

Abbe N.A. 1.25(Iris Diaphragm)

Illumination

LED Illumination Systems

6V/20W Halogen Lamp

6V/30W Halogen Lamp

Image Systems

3.2MP Pixel

5 MP Pixel
