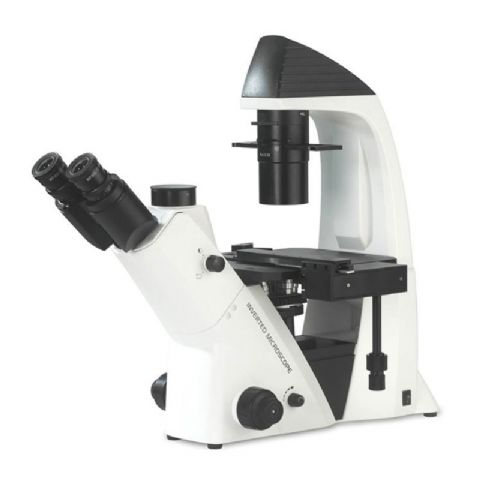

23mm Wide Field Eyepiece Inverted Biological Microscope
Zoom Browse
Product Name: 23mm Wide Field Eyepiece Inverted Biological Microscope
Product Numbers: BIMI-21564
Product Specifications: Working distance:72mm
Product Unit: Light distribution (both): 100 : 0 (100% for eyepiece)
Product Remark: 80 : 20 (80% for trinocular head and 20% for eyepiece)
Product Class:Measuring and Testing Instruments > Optical Instruments > Microscope
Product Details
【DateTime:2020-01-04 Browse:】【Font: Big Mid Small】【Print】【Close

23mm Wide Field Eyepiece Inverted Biological Microscope

Characteristics:

Newly launched type

● Apply to observation and cultivation for cell tissue

● Wide field eyepiece, view field up to Φ23mm,more comfortable for observation


● Long working distance condenser N.A. 0.30,Working distance:72mm

● Working distance: 195mm (without condenser),available for extra high culture dish

● Large size stage, convenient for research.   Size:240mm(X)× 210(Y)mm

● Mechanical stage available for 96 holes plate.  Moving range:128mm(X)× 80(Y)mm

● Large diameter quintuple nosepiece can be installed more objectives, more convenient for using.

● Light distribution (both): 100 : 0 (100% for eyepiece);

80 : 20 (80% for trinocular head and 20% for eyepiece)

Microscope General Layout Diagram

Specification:


Item

Specification

Outfits

Eyepiece

WF10×/22mm

●●

LWD Infinity Plan Objectives

LPL 4×/0.11

W.D.=12.1mm

LPLAN 10×/0.25

W.D.=8.3mm

LPLAN 20×/0.40

W.D.=7.2mm

LPLAN 40×/0.60

W.D.=3.4mm

LWD Infinity Plan Phase Contrast Objectives

LPL Ph P  4×/0.10

W.D.=9.2mm

LPL Ph P 10×/0.25

W.D.=8.3mm

LPL Ph P 20×/0.40

W.D.=7.2mm

LPL Ph P 40×/0.60

W.D.=3.4mm

Annular Spot

10×/20×/ 40×

Seidentopf

Trinocular Head

Inclined 45°,  interpupilary distance: 48-76mm

Light distribution (both):

100: 0(100% for eyepiece)

80:20 (80% for trinocular head, and 20% for eyepiece)

Nosepiece

Quintuple

Mechanical Stage

Stage size: X×Y: 210×241mm, Round slide size:Φ110mm,

Attached mechanical stage

(available for 96 holes plate, moving range X×Y:128×80mm.)

Culture Dish Holder

65mm

54mm

35mm

blood cell counter

Condenser

Long working distance, Quickly detachable ,  N.A.0.3,

Working distance: 72mm (with condenser),195mm(without condenser).

Koehler Illumination

6V/30W (input voltage:100V~240V)

5WLED,input voltage:100V~240V

Filter

Blue

Green

Amber /Grey

C-mount

1 X /0.5X /0.75X C-Mount (focus adjustable)

Epi Fluorescence Illumination

Epi fluorescence media unit , field diaphragm,center adjustable.

100W mercury lamp ,5WLED(input voltage:100V~240V)

B, G, V, UV fluorescence filters can be chosen

Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.

Packing Size: 660mm×590mm×325mm     Gross Weight: 18 kgs     Net Weight: 13.5 kgs
