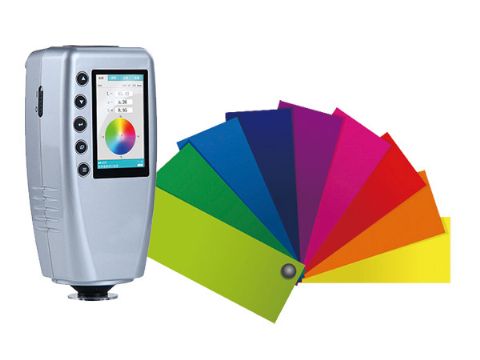

China Portable Colorimeter Color Difference Meter:
Features:
- High-precision
- Automatic correction when starting up
- Environmental, low energy consumption instrument, high capacity lithium battery
- Comfortable observation with real color screen display
- Exquisite and delicate
Specifications:
|
Model
|
CDME-10
|
|
Color Space
|
CIELAB
|
|
Color Difference Formula
|
Delta E*ab
|
|
Measurement Caliber
|
φ8mm
|
|
Illumination Condition
|
CIE Recommendation: 8/d
|
|
Light Source
|
D65
|
|
Sensor
|
Photodiode array
|
|
Observer
|
CIE 10° Standard observer
|
|
Measurement Range
|
L: 0 to 100
|
|
Repeated Accuracy
|
DeltaE<0.08
|
|
Table Difference
|
DeltaE<0.2
|
|
Measurement Interval
|
1 Sec.
|
|
Storage Capacity
|
Type sample data : 100 groups with testing sample data: 100 groups
|
|
Lifetime of Bulb
|
5 years more than 1.6 million measurements
|
|
Display Screen
|
TFT true color 2.8inch@(16:9)
|
|
Language
|
English/Simplified Chinese
|
|
Interface of External
|
USB2.0 (USB-B) RS-232 (115200bps)
|
|
Working TemperatureRange
|
0-40 degree
|
|
Storage TemperatureRange
|
-20-50 degree
|
|
Humidity Range
|
Relative humidity less than 85%,without condensation
|
|
Weight
|
700g
|
|
Size
|
199*68*90mm
|
|
Package Size
|
400*240*340mm
|
|
Battery Charging Time
|
8 hrs
|
|
Battery
|
Li-ion battery, 5000 times Measurement
|
|
Standard Accessories
|
AC adapter/ 3000mAH Li-ion battery
|
|
Optional Accessories
|
Flour measuring device/Micro printer
|
