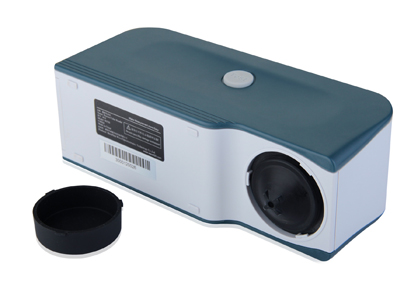

Colorimeter is a high precision, high stability, versatile colorimeter. it has three measuring light sources (D50, D65 and F11), two color modes (CIE1976LAB, CIELCH), a color difference formula (Delta E * ab); two languages patterns (Simplified Chinese and English) and 3 measuring calibers to choose. The color difference meter( colorimeter )has a greater capacity of data storage space, you also can add mini-printers to do real-time printing measurement data. It can be used with standard "color analysis system" software.
The colorimeter 4mm diameter version is a specially designed, especially for a small area, arc and other special surface type measuring cost-effective precision colorimeter. In a small device, small parts, arc exceptional color quality of face detection to bring great convenience for the user.







Display Mode	CIELAB,CIELCH
Color Difference Formula	Delta E*ab
Illumination Condition	CIE Recommendation: 8/d
Light Source	LED blue excitation
Sensor	Photodiode array
Measurement Caliber	φ4mm/φ8mm/φ16mm  Alternative
Measurement Condition	Observer: CIE 10 degree Standard observer   Light source: D50 D65 F11(TL84)   Contain light way: SCI SCE
Measurement Range	L: 0 to 100
Repeated Accuracy	Delta E<0.05 (take the deviation average after 30 times measuring the whiteboard)
Table Difference	Delta E<0.2
Measurement Interval	0.5 Sec.
Storage Capacity	Type sample data : 100 with testing sample data: 200
Language Patterns	English/Simplified Chinese
Battery Charging Time	8 hrs
Battery	Li-ion battery, 5000 times Measurement
Lifetime of Bulb	5 years more than 1.6 million measurements
Display Screen	TFT true color 2.8inch@(16:9)  Resolution ratio:400x240
Interface of External	USB2.0 (Usb- data communication with 《color analysis system》software                                     RS-232 (115200bps)- connected with micro printer
Working Temperature Range	0-40 C degree（32℉-104℉）
Storage Temperature Range	-20-+50 C degree（-4℉-122℉）
Humidity Range	Relative humidity less than 85%,without condensation
Weight	700g
Size	199*68*90mm
Size of Exterior Package	400*240*340mm
Standard Accessories	3000mAH Li-ion battery/AC adapter/USB Data line/CD<Color analysis software>/User     manual/Warranty card
Optional Accessories	Flour measuring device/Liquid measuring device/Micro printer
