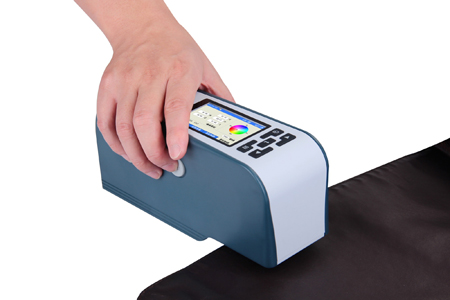

Portable Color Meter Color Difference Meter
Part No: CDME-1230
Description:
This colorimeter used in textile, printing and dyeing, clothing, footwear, leather, chemicals, plastics, plastics, pigments,paints, inks, printing, metal, photography, toys, etc. The color quality control, color control, color analysis, sample testing,production-line testing, is also suitable for injection molding, ink, paint, spraying auxiliary colors.The precision color meter 8mm caliber version is a universal colorimeter, considering all walks of life and general method of detecting the color to apply customary and considered a variety of materials in the measurement of the measurement aperture size requirements and developed. The precision color difference meter 8mm caliber version of its versatility and its own tiny difference between units, measurement stability for all sectors for the industry, cross-industry color exchange offer great convenience and trustworthy and reliability.
| Display Mode |
CIELAB,CIELCH |
| Color Difference Formula |
Delta E*ab |
| Illumination Condition |
CIE Recommendation: 8/d |
| Light Source |
LED blue excitation |
| Sensor |
Photodiode array |
| Measurement Caliber |
φ4mm/φ8mm/φ16mm Alternative |
| Measurement Condition |
Observer: CIE 10 degree Standard observer
Light source: D50 D65 F11(TL84)
Contain light way: SCI SCE |
| Measurement Range |
L: 0 to 100 |
| Repeated Accuracy |
Delta E<0.05 (take the deviation average after 30 times measuring the whiteboard) |
| Table Difference |
Delta E<0.2 |
| Measurement Interval |
0.5 Sec. |
| Storage Capacity |
Type sample data : 100 with testing sample data: 200
|
| Language Patterns |
English/Simplified Chinese |
| Battery Charging Time |
8 hrs |
| Battery |
Li-ion battery, 5000 times Measurement |
| Lifetime of Bulb |
5 years more than 1.6 million measurements |
| Display Screen |
TFT true color 2.8inch@(16:9) Resolution ratio:400x240 |
| Interface of External |
USB2.0 (Usb- data communication with <color analysis system>software RS-232 (115200bps)- connected with micro printer |
| Working Temperature Range |
0-40 C degree（32 F-104 F） |
| Storage Temperature Range |
-20-+50 C degree（-4℉-122℉） |
| Humidity Range |
Relative humidity less than 85%,without condensation |
| Weight |
700g |
| Size |
199*68*90mm |
| Size of Exterior Package |
400*240*340mm |

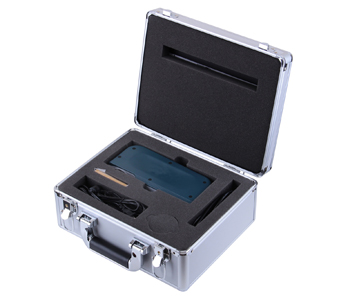

| Standard Accessories |
3000mAH Li-ion battery/AC adapter/USB Data line/CD<Color analysis software>/User manual/Warranty card |
| Optional Accessories |
Flour measuring device/Liquid measuring device/Micro printer |
