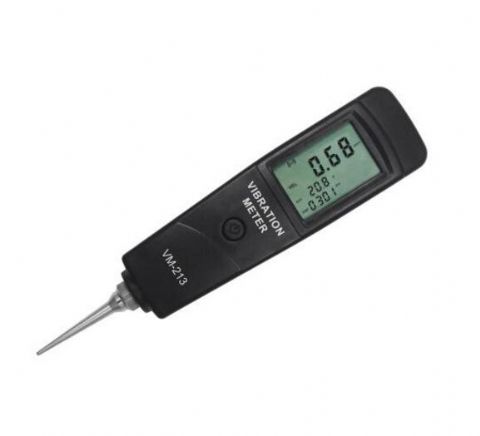

Digital Vibration Meter For Measuring Rotating Machinery
* With Max Hold function.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Bearing condition monitoring function.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Can display the parameters of Displacement, Velocity and Acceleration simultaneously.
Specification:
| Sensor |
Piezoelectric Transducer |
| Measuring Parameters & Range |
Acceleration: 0.1-300.0m/s² equivalent peak 985ft/s²
|
| Velocity: 0.01-300.00mm/s true RMS 0.000~13.00inch/s |
| Displacement: 0.001-3.000mm 0.04~120.0mil equivalent pk-pk |
| Frequency Range |
Acceleration: 10 Hz ~ 10k Hz |
| Velocity: 10 Hz ~ 1k Hz |
| Displacement: 10 Hz ~ 1k Hz |
| Accuracy |
±5% + 2digits |
| Metric / Imperial Conversion |
|
| Max. Value Hold |
|
| Power Off |
Manual Power Off or Auto Power Off |
| Data Output |
USB, RS-232 |
| Operating Conditions |
Temperature: 0~50 °C Humidity: <90 %RH |
| Power Supply |
Lithium battery |
| Dimensions |
202x43x23 mm ( 8.0x1.7x0.9 inch ) |
| Weight |
130 g (Including Batteries) |
Package:
1. Main Unit
2. Carrying Case
3. Manual Book
Optional Accessories:
1. USB, RS-232 data cable with software
2. Bluetooth data out put with software
