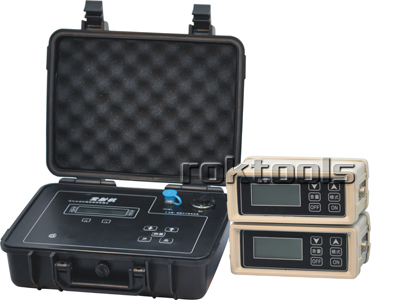

Long Range Underground Pipeline Protection Coating Leak Detector

1. The transmitter Technical Data :
( 1 ). The transmitter power :0-35W, can automatically adjust the servo control
( 2 ). The output impedance matching :5-1000Ω, automatic matching ( more suitable for northern arid. desert soil environment )
( 3 ). Range from :0.03-10Km, 10Km outside can gradually move
( 4 ),  Power supply : 12V (12AH military lithium batteries )
( 5 ), Operating temperature : -20 °C - +60 °C
( 6 ). The control system : DSP + vector control. support for system upgrade
( 7 ). Regulating systems : digital keyboard control
( 8 ). Weight : 3.0Kg ( with battery )
( 9 ). Dimensions : 276mm * 227mm * 98mm


2. Proble Specfications

( 1 ) Sensitivity :-85db
( 2 ). the position deviation : ≤ 5cm
( 3 ). probe depth : ≤ 10m
( 4 ). total distance accuracy: ≤ 0.1% of test distance
( 5 ) Power supply : 9.6V NiMH battery pack
( 6 ). Dimensions : 165 mm * 110 mm * 68mm
( 7 ). Weight : 0.9Kg ( with battery )

3. Leak technical Data :
( 1 ). leak detection accuracy : ≥ 0.25mm2
( 2 ). the position deviation : ≤ 5cm;
( 3 ). Power Supply : 9.6V NiMH battery pack
( 4 ). Dimensions : 165 mm × 110 mm × 68mm
( 5 ). Weight : 0.9Kg ( with battery )

Package:

Transmitter 1; probe device  1; leak detector 1;
Accessories:
(1) Probe rod                               x1
(2) a detection wire                     x1
(3) an output wire                        x1
(4) a ground wire                        x1
(5) ground rod                            x2
(6) a small rasp                         x1
(7) a magnet                             x1
(8) 12.6V charger                     x1
(9) 9.6V  charger                      x2
(10) Fuse 1 A                            x2
(11) a set of random file          x1
