Description :

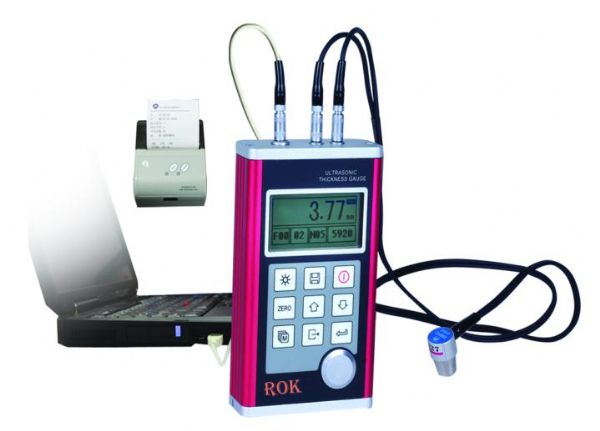

Ultrasonic Thickness Gauges are Intented to improve safety and ensure reliability of material subject to corrosion or erosion.
Corrosion gauges with their dual-element transducers are the primary inspection tool used to measure the remaining walls of components such as pipelines, pressure vessels, storage tanks, and numerous other applications..
Precision gauges use single-element transducers to provide the thinnest range and highest degree of accuracy possible. Common applications include metals and a variety of non-metals (i.e. glass, ceramic, plastic, etc.).
Specification:
|
Measuring Range
|
0.75mm-300mm(in steel)
|
|
Sound Velocity
|
1000~9999 m/s
|
|
Resolution
|
0.1/0.01mm (selectable)
|
|
Units
|
mm/inch (selectable)
|
|
Storage
|
20 groups (100 files / group)
|
|
Accuracy
|
± ( 0.5%Thickness+0.04 ) mm
|
|
Alarm
|
preset upper and lower limit
|
|
Work voltage
|
3V( 2 AA alkaline battaries)
|
|
Interface port
|
RS232
|
|
Dimensions
|
132mm*76mm*33mm
|
|
Weight
|
345g
|
|
Display
|
LCD with backlight
|
|
Continuous working period
|
100 hours (with backlight off)
|
Standard Deliveries:
| No |
Items |
Quantity |
| 1 |
Main unit |
1 |
| 2 |
N05/90 probe |
1 |
| 3 |
Couplant |
1 |
| 5 |
Instruction manual |
1 |
| 6 |
Warranty card |
1 |
| 7 |
Carrying case |
1 |
| 9 |
Cables |
1 |
| 10 |
Batteries |
4 |
