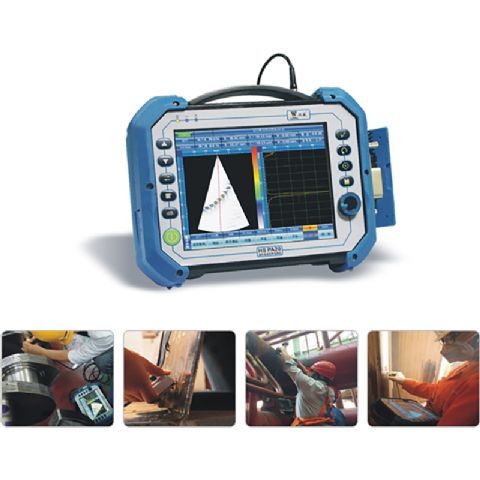

Portable Phased Array Ultrasonic Flaw Detector NDT Instruments
Zoom Browse
Product Name: Portable Phased Array Ultrasonic Flaw Detector NDT Instruments
Product Numbers: FD-HSPA20
Product Specifications: Full angle TCG / DAC curve compensation function
Product Unit: Phased array, TOFD, A-scan
Product Remark: 32: 32 simultaneous transmit and receive
Product Class:Measuring and Testing Instruments > NDT Instruments > Ultrasonic Flaw Detectors
Product Details
【DateTime:2018-12-14 Browse:】【Font: Big Mid Small】【Print】【Close

Portable Phased Array Ultrasonic Flaw Detector

Application:

- Fastening Bolt

- Weld Detection of Friction stir welding

- Fusion depth detection of bridge U Rib plate

- PE pipe electric fusion welding detection

- Circular seam detection of small diameter tube

- Axle detection

- T, K, Y, Y and flat weld detection

- Corrosive C scanning detection


Features:

- Phased array, TOFD, A-scan three-in-one, with PA + 2 / 4TOFD + A scan function, key switch, defect validation more efficient;

- small size, light weight, easy to carry, worry-free outdoor and high altitude;

- 32: 32 simultaneous transmit and receive, high integration, better imaging;

- The new routing of operation menu, similar to conventional A super-device operating procedures, easy to learn and easy to use;

- High-sensitivity touch-screen button, double-mode shuttle knob operation,more convenient;

→ Built a large number of open model of the workpiece, the defect display is intuitive, the analysis of shaped structure easier;

(Suitable for flat welds, "T" welds, fillet welds, pipe welds, forgings, plates, axles, rims, etc.)

- With T, K, Y, flat welds and other parts of the flip function, the image more intuitive;

- With focused sound ray simulation function, real-time display of the relationship between the focus point of the simulated sound wave and the weld groove;

- 60Hz refresh rate, dynamic graphics better, faster display

- Full angle TCG / DAC curve compensation function;

- ACG angle compensation, playback, correction function;

- full dynamic focus, focusing performance, defect results more accurate;

- A / B / C / D / S / L / TOFD / 3D multiple image display, defect analysis is more comprehensive;

- With depth gate, sound gate automatic alarm function, defect identification more efficient;

- With coupling monitoring function;

- With no test block module automatic calibration function;

- Support encoder scan and record fully and automatically .

- With the probe, wedge, parameters, data, reports and other documents classified editing;

- With automatic report of flaw detection output print function.


Instrument parameters:

- Display Size: 8.4 inches, 24-bit true color display

- Data Storage: Internal 16GB, external USB can be stored directly

- Expansion Interface: USB2.0 × 2, 100M / 1000M LAN × 1, VGA × 1

- Encoder interface: 1 (supports two encoder connections)

- Alarm: 1

- Operating temperature: 0-45 ℃

- Storage temperature: -20 ℃ -65 ℃

- Power supply: AC220-DC15V AC adapter, 11.1V lithium battery

- Life time: 8 hours (single)

- Size: 265 × 180 × 75 (mm)

- Weight: 2.7Kg (with battery)


Phased array function parameters:

- System bandwidth: 0.5-15MHz (-3dB)

- Digitization frequency: 100MHz 8bit

- Digital sampling point: 8192

- Digital smoothing average: 16

- aperture: 32 wafers

- S sweep beam: 256

- Repeat frequency: 1.0KHz-5.0KHz

- Refresh rate: 60Hz

- Delay accuracy: 2.5ns

- Detection method: positive detection, negative detection, detection, radio frequency waves

- launch delay range: 0-20us

- Launch voltage: 50V-200V

- Pulse width: 30ns-500ns (step 10ns)

- Pulse excitation mode: negative square wave

- Gain Range: 0-80 dB analog gain, 0-30 dB digital gain

- Gain Step: Analog gain 0.1 dB, digital gain 6 dB

- DAC: 16 points

- TCG: 16 oclock

- Focus: launch a single point of focus, to receive dynamic focus

- Scan Image: A / C / D / S / L / 3D


TOFD module parameters:

- System bandwidth: 0.5-15MHz (-3dB)

- Digitization frequency: 100MHz 10bit

- Digital sampling point: 1024

- Number average: 16

- Repeat frequency: 100Hz-1KHz

- Refresh rate: 60Hz

- Detection method: positive detection, negative detection, detection, radio frequency waves


Packing List:


- Phased Array Ultrasonic Flaw Detector    1pcs

- PA 20 adapter

- Power Line 1pcs

- Charger 1 pcs

- Battery   2

- USB disk  8G    1pcs

- Cross screwdriver  1 pcs

- Inspection certificate 1pcs

- Test report 1

- Instruction  1


-
