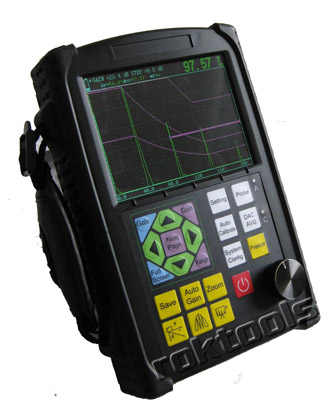

Ultrasonic Flaw Detectors Automated Display Precise Flaw Location
Part No: FD-1007
Features:
*Automated make video of test process and play; Connect the Upan,the length of video is unlimited
* Automated calibration of transducer Zero Offset and/or Velocity ;
* Automated gain,Peak Hold and Peak Memory;
* Automated display precise flaw location(Depth d,level p,distance s,amplitude,sz dB,ф);
*Automated switch three staff gauge ((Depth d,level  p,distance s);
*500 independence setup, any criterion can be input freely, we can work in the scene without test block;
* Big memory of 1000 A graph.
*Gate and DAC alarm;Acoustic-Optical alarm;
*RS232/USB port,communication with pc is easy;
*The embeded software can be online updated;
* Li battery, continue working time up to 12 hours;
* Display freeze;
*Automated echo degree;
* Angles and K-value;
*Lock and unlock function of system parameters;
* AWS D1.1;
* Dormancy and screen savers;
*Electronic clock calendar ;
*There are 14 standards of DAC .
*Two gates setting and alarm indication;
*High-speed capture and very low noise;
*DAC,AVG,TCG,B Scan ; Solid metal housing (IP65);
* Automated calculate the size of the flaw with w ide bottom type in AVG function.
*6dB DAC functions;
*Provides high contrast viewing of the waveform from bright, direct sunlight to completae darkness and easy to read from all angles;
* Powerful pc software and reports can be export to excel;

Specifications:
Range of scanning:              0 mm ~10000 mm
Resolution for scanning:       0.1mm (2.5mm ~100mm)
                                          1mm (100 mm ~10000mm)
Range of gain:                     0dB ~130 dB
D-Delay:                             -20µs~+3400µs
P-Delay:                             0µs~99.99µs
Sound speed                      1000 m/s~20000m/s
Operation Environment
         Temperature:             -20degree~50degree
         Humidity:                    20%~90%RH
         Free of strong magnetic field and corrosion.
Power supply                     Li battery 7.4V  4800mAh
Overall dimension:              238mm*160mm*50mm
Weight:                             1.0kg

Range of scanning (mm) Range of scanning (mm);0~10000
Steps: 2.5,5,10,20, 30,40,50,60,70,80,90, 100,150,200, 250, 300, 350, 400, 450,500,600,700,800,900,1000,2000,3000,4000,5000,6000,7000,8000,9000,10000
Adjusting step: 0.1mm(2.5 mm~99.9mm),1mm(100mm~10000mm)
D-delay (us) D-delay (s);-20~+3400
Steps: -20,-10,0.0, 10, 20, 50,100,150,200,250,300,350,400,450,500, 600,
700,800,900,1000,1500,2000,2500,3000,3400.
Adjusting steps: 0.1(-20us~999.9us),1(1000us~3400us)
P-delay (s)  P-delay;0.0~99.99
Adjusting steps: 0.01
 MTLVEL(m/s)  MTLVEL;1000~20000
10 fixed levels: 2260,2730,3080,3230,4700,5920,630012000,13000,14000,15000
Adjusting steps:  1
 Working mode  Single probe (receiving and sending), double probe (one for receiving and another for sending), transmission  (transmission probe)
 Frequency Range (MHz)  0.5~20
 Gain adjustment (dB)  0~130
 Adjusting step:  0.0,0.1,0.5,1,2,6,12
 Reject  0%~80% of screen height, step: 1%
 Vertical linear error  Vertical linear error is not more than 3%
 Horizontal linear error  Not more than 0.2% in the scanning range
 Sensitivity Leavings  Less than62 dB
Dynamic range  Less than34dB
Alarm  Three modes, i.e. forbidden wave, loss wave and auto
 A-Scan display area
 Full screen or local
A-Scan display freezing and de-freezing  A-Scan filling
 Data save  1000 A-Scan images (including setting of instrument)
 Interface  RS232/USB
 Measuring unit  mm/inch
 Battery Li battery  7.4V  4800mAh
 Power adaptor  Input 100V~240V/50Hz~60Hz
Output 9VDC/1.5A
Port type BNC

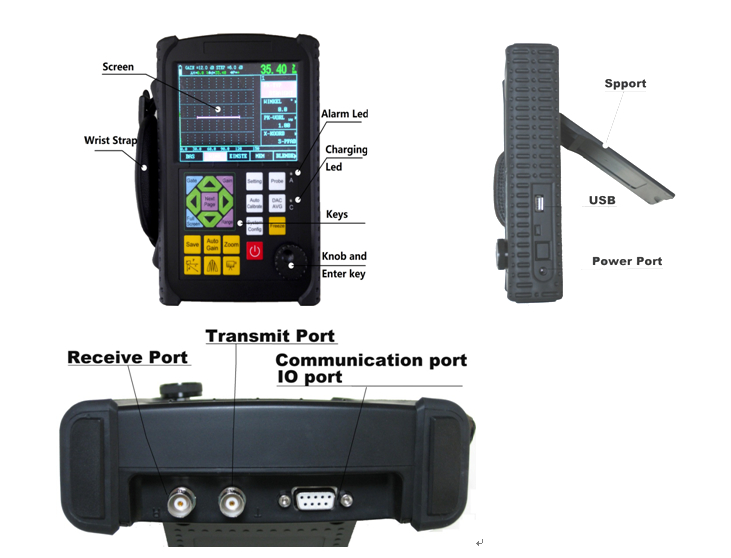

Illustration
