Sponge Durometer Hardness Tester Meter
Zoom Browse
Product Name: Sponge Durometer Hardness Tester Meter
Product Numbers: SD-305F-305MF
Product Specifications: Measurement Range:0 ~ 100 HF
Product Unit: Spring Force:455 gf
Product Remark: DIN 53505
Product Class:Measuring and Testing Instruments > NDT Instruments > Shore Durometer Hardness Tester
Product Details
【DateTime:2018-02-28 Browse:】【Font: Big Mid Small】【Print】【Close

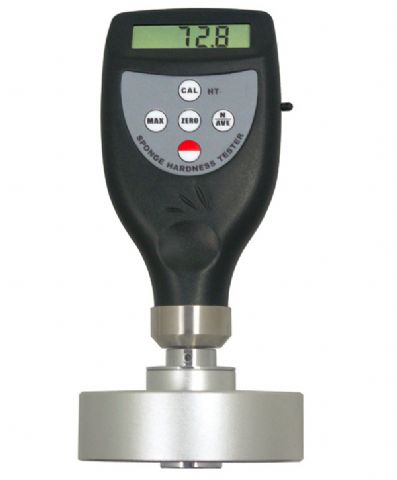

Foam Sponge Hardness Meter Gauge

      Suitable for the hardness measurement of Foam

 Part No: SD-305F

              SD-305MF( For Memory Sponge)
Feature:

* It meets standards of DIN 53505, ISO 868, ISO 7619, ASTMD 2240, JISK7215.
* With average calculate function.
* Peak value deposit function.
* Under-voltage alarm function.
* Use “USB data output” and “RS-232 data output” to connect with PC.(Optional)
* Provide “Bluetooth ™ data output” choice.


*Parameters Displayed:Hardness Result, Average Value, Max. Value
*Measurement Range:0 ~ 100 HF
*Measurement Deviation:< 1%HF
*Resolution:0.1HF
*Spring Force:455 gf
*Sensor Head Diameter:25mm
*Sensor Foot Diameter:80mm
*Battery Indicator:Low Battery Indicator
*Operating Conditions:Temperature: 0 ~ 40 ℃ Humidity: 10 ~ 90 %RH
*Power Supply:4 x 1.5 V AAA Size (UM-4) Battery
*Dimensions:162 x 80 x 80 mm (6.4 x 3.1 x 3.1 inch)
*Weight:490 g(Not Including Batteries)


Standard Accessories

*Main Unit
*Carrying Case
*Operation Manual



Optional Accessories
*Shore Hardness Tester Measurement Stand
*Rubber Hardness Test Block (A / D Type )
*USB, RS-232C data cable with software (Optional)
*Bluetooth data out put with software
