Portable Surface Roughness Tester With Bluetooth APP Roughness Gauge
Zoom Browse
Product Name: Portable Surface Roughness Tester With Bluetooth APP Roughness Gauge
Product Numbers: ROTE-4632
Product Specifications: Range: 0.005-16.000
Product Unit: Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx
Product Remark: Rz: 0.02-160.00
Product Class:Measuring and Testing Instruments > NDT Instruments > Portable Roughness Testers
Product Details
【DateTime:2018-03-10 Browse:】【Font: Big Mid Small】【Print】【Close
Portable Surface Roughness Tester With Bluetooth APP Roughness Gauge

Main feature:
*Electromechanical integration design, small volume, light weight, easy to use;
*Using DSP chip to control and data processing, high speed, low power consumption;
*128 x 64 OLED dot matrix display, digital / graphic display; highlight no perspective;
*Intuitive and rich display information, can display all the parameters and graphics;
*Compatible with ISO, DIN, ANSI, JIS national standards;
*Residual quantity icon, prompting the user to charge;
*Continuous working time: more than 20 hours.
*Real-time clock settings and display, convenient data recording and storage.
*With automatic dormancy, automatic shutdown and power saving function
*Reliable control motor to go dead circuit and software design
*Measurement information display, menu prompt information, false information and switch machine and other tips that information;
*Can be connected to a computer and printer;
*Optional different sensor, measuring platform, mini printer, extension rod and other accessories.
*Plastic shell, inspired by “TRANSFORMERS” stylish design, portable, high reliability.
*Optional bluetooth function.
*High price performance
*Bluetooth function
*Can acquire, manage data by APP.
Specification:

Testing parameters

Ra, Rz, Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr, Rx;

Measuring range (um)

Ra: 0.005-16.000

Rz: 0.02-160.00

Sample length (mm)

0.25, 0.80, 2.50

Evaluation length(mm)

(1-5)L

Maximum drive stroke

17.5mm/0.7inch

Indication accuracy

0.001

Indication error

±(7-10)%

Variability

<6%

Data Storage

100 groups

Power

Rechargeable li-battery

Working temperature

-20℃~40℃

Relative humidity

<90%

Size

158mmx63.5mmx46mm

Weight of Host

0.3kg

Standard package:
1 ROTE-4632    1
 2 Standard Sensor 1
 3 Calibration block and bracket 1
 4 Bracket  1
 5 Charger  1
6 Adjustable support  1
7 Operating manual  1
8 Warranty card  1
9 Certificate of approval 1
10 Instrument case 1

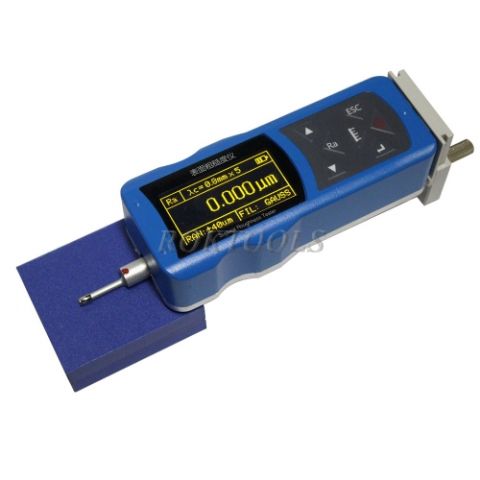

ROTE-4632 Roughness Tester

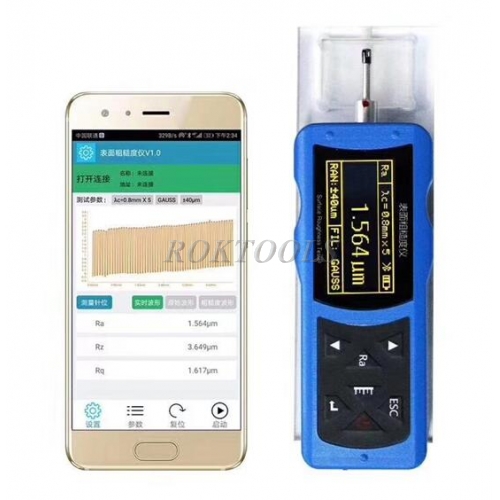

ROTE-4632 Roughness Tester 2
