ROK Portable Surface Roughness Tester Ra, Rz, Rq, Rt
Zoom Browse
Product Name: ROK Portable Surface Roughness Tester Ra, Rz, Rq, Rt
Product Numbers: ROTE-1201
Product Specifications: Ra:0.05~10.00µm
Product Unit: ROTE-1201B Ra, Rz, Rq, Rt
Product Remark: ROTE-1201A Ra, RZ
Product Class:Measuring and Testing Instruments > NDT Instruments > Portable Roughness Testers
Product Details
【DateTime:2018-03-07 Browse:】【Font: Big Mid Small】【Print】【Close

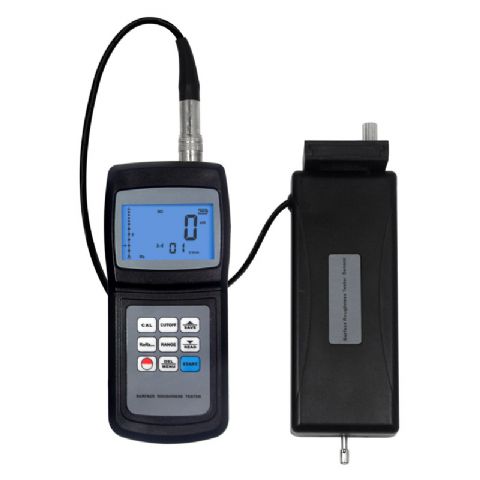

ROK Portable Surface Roughness Tester Ra, Rz, Rq, Rt.
Part NO:ROTE-1201A Ra, RZ,
ROTE-1201B Ra, Rz, Rq, Rt

      Compared with other modles, ROTE-1201 is manufactured with separated sensor.

Features:

* Be compatible with four standards of ISO, DIN, ANSI and JIS.
* Multiple parameter measurement: Ra, Rz, Rq, Rt.
* Highly sophisticated inductance sensor.
* Four wave filtering methods : RC, PC-RC, GAUSS and D-P.
* Small in size, light in weight and easy to use.
* Manual or automatic shut down.
* Can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.
* Metric /Imperial Conversion.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.

Specification:

tandards GB/T6062,ISO4287,DIN4768,JIS B,ANSI46.1
Parameters Ra,Rq,Rz,Rt
Measuring Range
Ra:0.05~10.00µm      Rz:0.020~100.0µm
 /1.000~400.0µinch      /0.780~4000µinch
Accuracy <<±10%
Fluctuation of Display Value <<6%
Resolution 0.001/0.01/0.1
Sensor Radius of Probe Pin 10µm
Material of Probe Pin Diamond
Measurement Force of Probe 16mN(1.6gf)
Probe Angle 90º
Vertical Radius of Guiding Head 48 mm
Maximum Driving Stroke 17.5mm/0.7inch
Cutoff length(l) 0.25mm,0.8mm,2.5mm
Driving Speed Sampling When Length=0.25mm,Vt=0.135 mm/s
When Length=0.8mm,Vt=0.5mm/s
When Length=2.5mm,Vt=1mm/s
Returning Vt=1mm/s
Profile Digital Filter RC,PC-RC,GAUSS,D-P
Evaluation Length 1~5L Optional
Data Memorize 7 Groups
Operating Conditions Temp:0~50ºC   Humidity:<80%RH
Power Supply 4x1.5V AAA(UM-4)Battery
Size
Main Unit Size::149x67x29mm
Measuring Base Size:185x56x47mm
Weight 485g
Standard Accessories Main Unit
Standard Sample Plate SSP-100
Standard Sensor SSP-100
Small Screwdriver
Measuring Base
Carrying Case ( B09 )
Operation Manual
Optinal Accessories RS-232C Cable with Software
Bluetooth Adapter with Software
Extension Rod
Groove Stylus
Curvature Probe
Measurement Stand



Package:

1. Main Unit
 2. Small Screwdriver
 3. Measuing Base
 4. Adjustable Stand
 5. Standard Sample Plate
 6. Standard Sensor
 7. Carrying Case
 8. Instruction Manual
