Holiday Detector For Coating Leak 30μm~1.5mm
Zoom Browse

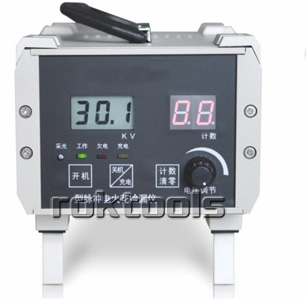

Product Name: Holiday Detector For Coating Leak 30μm~1.5mm
Product Numbers: HODE-1002
Product Specifications: 30μm~1.5mm
Product Unit: Output voltage:600v~8000v
Product Remark: 12V / 2800mA
Product Class:Measuring and Testing Instruments > NDT Instruments > Holiday Detector
Product Details
【DateTime:2014-06-24 Browse:】【Font: Big Mid Small】【Print】【Close
Holiday Detector For Coating Leak 30μm~1.5mm
Part No: HODE-1002

It looks the same as HODE-1001, but it has narrow range.

Specification:
1. Applicable detection thickness: 30μm~1.5mm
2. Output High-voltage: 0.6kv~8kv (stepless and continually adjustable)
3. Direct indication of output high-voltage
4. Battery:12V/2800mA
5. Power consumption: about 6W
6. Volume of main detector: 220×130×88 mm
7. Back light
8. Instantaneous boot, and automatic shutdown
9. 3-digit LCD displays output voltage, and with all-touch panel
10. Alarm: Dual alarm with earphone and buzzer
Packing List
(1)   Holiday Detector                                                           1set
(2)   High-voltage probe                                                       1 piece
(3)   Probe brush                                                                   2 pieces
(4)   Connecting rod                                                              1 piece
(5)   Earphone                                                                       1 piece
(6)   Backstrap                                                                      1 piece
(7)   Fuse                                                                                2 piece
(8)   Manual                                       1 copy
(9)   Warranty Card and Certificate of Conformity           1 copy
(10)   External packing box                          1 piece
(11)   Earthing wire                              1 piece
(12)   Charger                                 1 set
Note: Arc brush and circular probe are selectable (any length)


Attached Table for Detection Voltage

Anti-corrosion Material

Thickness of Anti-corrosion Coating (mm)

Detection Voltage (KV)

Remarks

Epoxy Coal Tar

0.2

0.4

0.6

0.8

4-5KV or self-defined

Perform according to standard (if provided)

Oil Asphalt

2

3

5.5

7

9

    11

15

18

20

24

Polyethylene Adhesive Tape

Based on: 3249TC=V  conversion formula

V: voltage; TC: thickness of anti-corrosion coating

Perform according to SY4014-92 Acceptance Standard

Glass Lining

Determine detection voltage according to previous experience.

Generally, it is 8KV20KV.

Other Anti-corrosion Materials

Detect voltage according to the design of design department or material insulation
