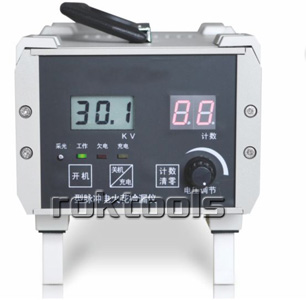

600v-30000v Holiday Detector
Part No: HODE-1001
Holiday detector is a dedicated instrument for the detection of metal corrosion coating quality and An electrical device used to determine the location of a gap or void in the anticorrosion coating of a metal surface through a variety of coating the surface of a conductive substrate plus a certain amount of pulse voltage, such as the coating is too thin, metal or a leak pinhole leak, when the pulse voltage throught the coating surface produce a spark discharge gap formation breakdown, while a pulse is sent to the alarm circuit signal to the alarm sound the alarm, and thus achieve the purpose of detection of coating.
Who need these instruments?
The instrument can use different thicknesses of glass-lined, glass, steel, coal tar epoxy coatings and rubber linings, the instrument lightweight, simple operation, stable and reliable, battery-powered, it is particularly suitable for field operations, widely used in chemical , petroleum, rubber, ceramic industry, is used to detect metal corrosion coating quality tool.
Technical parameters
Range: 50μm~10mm
Output voltage 600v~30000v
Battery 12V / 2800mA
Power consumption approximately 6W
Backlight Automatic backlight
on/off Switch on quickly, and turn off automatically
Operation panel 3 liquid crystal display output voltage, touch panel
Alarm function Earphone alarm and buzzer alarm
Package
DJ-6
■ host ×1

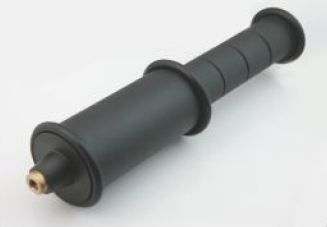

■ high voltage probe ×1
■ brush(brush / straight brush）×2
■ connecting rod ×1
■ headphones ×1
■ strap ×1
■ fuse ×2
■ manual ×1
■ warranty card ×1
■ charger ×1
■ grounding wire ×1
■ grounding rod ×1
■ packing box ×1 |
|
