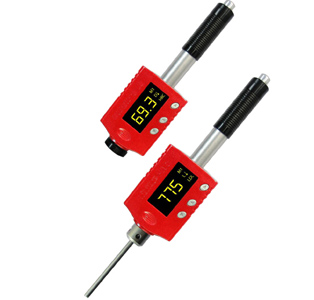

Pen Type Portable Lee Hardness Tester With Bluetooth
Part No: HT-2008
HT-2008 DL
Descriptions:
The Leeb measuring method was first brought into measurement technology in 1978. It is defined as the quotient of an impact body’s rebound velocity over its impact velocity, multiplied by 1000. Harder materials produce a higher rebound velocity than softer materials. For a specific group of material (e.g. steel, aluminum. etc.), Leeb hardness value represents a direct relationship to its hardness properties. For ordinary metal, conversion curves of hardness HL versus other standard static hardness (HB, HV, HRC, etc.) are available, enabling you to convert HL into other hardness values.HT-2008 is an advanced state-of-the-art palm sized metal hardness tester with many new features.Using our patent technology, HT-2008 is a new generation product. It has high accuracy:+/-2 HL (or 0.3% @HL800) with high contract OLED display and wide environment temperature(-40ºC~70ºC). Apart from huge memories in 400 blocks with 360k data, HT-2008 can download measuring data to PC and printout to micro-printer by USB port and wirelessly with internal Blue-tooth module. The battery can be charged simply from USB port, also it has a
customer re-calibration and statistics function.
HT-2008 DL is equipped with two-in-one probe. With unique two-in-one probe, HT-2008 DL can convert between probe D and probe DL simply by changing impact body. It’s
more economic than buying them individually. It has the same configuration with HT-2008 DL except two-in-one probe.
Features:
-- Integrated design , easy operation
-- Digital with high contrast OLED display
-- Wide operating environment: -40oC-70oC
-- High accuracy: +/-2 HL (or 0.3% @HL800)
-- Dual values( Leeb value and one conversion value) can be displayed at the same screen
-- Two display modes: single value shown in big letter or multi-values shown in batch
-- Screen view displays in four different directions, more convenient to view
-- Huge memories in 400 blocks with 360K data, data can be recalled easily
-- USB, RS232 interface, it can connect to computer
-- RS232 and Bluetooth interface, it can connect micro-printer directly by cable or wireless
-- Customer re-calibration allowed
-- 3.7 V Li-ion rechargeable battery , it can be charged by USB or power source
-- Statistics value can be calculated automatically
-- With strength conversion value
-- Power on/off automatically
-- Packed in water-proof and rigid carrying case
Specifications
| Model |
HT-2008/2008DL |
| Principle |
Leeb hardness measurement |
| Accuracy / Repeatability |
±0.3% @HL=800 / ±2HL |
| Display |
High contrast OLED |
| Hardness scale |
HL/HRC/HRB/HB/HV/HS/HRA/σb |
| Measuring range |
HL170-960 / HRC17-70 / HRB13-109 / HB20-655 / HV80-940 / HS32-99.5 / HRA30-88 / σb(rm)255-2639N/mm2 |
| Impact device |
D/ D-DL 2-in-1 (internal)* |
| Materials |
10 common metal materials |
| Memory |
360000 data in 400 blocks, can be saved and
re-readable |
| Statistics function |
Average / Max. / Min. / S. value |
| Recalibration |
Allowed by user |
| Indicator |
Low battery |
| Interface |
USB/RS232/Bluetooth to PC for transferring
data or printing, USB for charging |
| Bluetooth microprinter |
Included |
| Power on/off |
Auto |
| Power supply |
3.7V Li-ion rechargeable battery |
| Working environment |
-40Cel~+70 Cel Deg. |
| Dimension (mm) |
148x44x22 |
| Net weight (g) |
110 |
| Standards |
Conforming to ASTM A956, DIN 50156, GB/T 17394-1998 |
| *: D-DL 2-in-1 probe is only available for DL models. |
|
Standard Pakcage:
HT-2008 main unit 1
Internal impact device D(for HT-2008) 1
2-in-1 impact device D/DL(for HT-2008 D&DL) 1
Test block D 1
Cleaning brush 1
3.7 V Li-ion rechargeable battery (internal) 1
Bluetooth module(internal) 1
Bluetooth microprinter 1
USB cable 1
Data managing software 1
Operation manual 1
Test Certificate 1
Carrying case 1
Optional accessories
Bluetooth micro printer (powered by rechargeable battery)
RS232 microprinter(powered by rechargeable battery)
Special support rings
Standard support ring for probe D
Small support ring for probe D
Impact body D
Carbide ball tip D
Test block D with certificate
Test block D w/o certificate
Charger
European adapter plug
