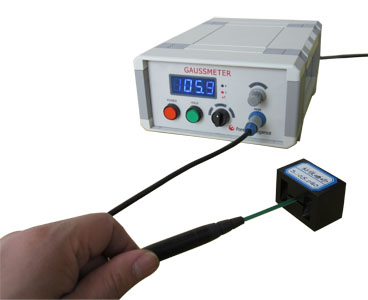

GAUSSMETER is based on the Hall effect magnetic field strength of the latest developments in instrumentation, the design of desktop-type Gauss meter. Maximum range 330.0mT and 3000mT two tranches, the minimum basic error of 1.0%. Test probe connectors is imported, stable and reliable connection.

Application:

1. Magnetic surface magnetic field measurement,

2. DC coil magnetic field,

3. DC electromagnet gap magnetic field measurement.

Features:

1. The bright blue LCD meter display, with wide test range;

2. Display directly the N / S pole of tested surface;

3. With the probe calibration automatically, the users do not need to calibrate the probe with the calibration magnet when replacing the probe.

4. using imported GaAs hall sensor chip components, accuracy and linearity reached a higher level.

Power Supply	AC220V (or specified)
Measuring Range	0-±300mT,0-±3000mT two gears
Accuracy	More than 1.0% (full scale)
Resolution	0.1 mT
Working Condition	Temp.: 0~50ºC, humidity:35~80%

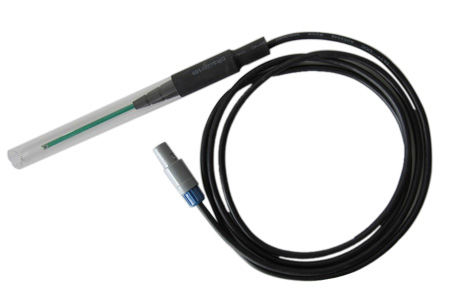

Probe	0.32mm(D)×1mm(W) Senstive area:0.2x0.2mm
Dimension	250mm×180mm×100mm
Weight	1.2 kgs



There are Hall Effect sensors in most of the gaussmeter that play a very important role in reading the electromagnetic strength, Any person who knows the procedure of making such meter can use the same very easily. You should take care of some steps while using the gaussmeter for measurement purpose and to know that How to Use a Gauss Meter. Before starting the process of measurement you should make sure the non availability of any magnet while zeroing the display meter of the gaussmeter. It is very important to reset the display to take the exact measurement of the electromagnetic field. There are some meter which can store the various reading that has been taken at various times that is why you should make sure to take the same in the right zero position, Choosing of the right reset button can lead you to the zero meters to have the right calculation of the magnetic field with the help of a good magnetometer.
