Magnet Portable Tesla Meter Handheld Gauss Meter
Zoom Browse
Product Name: Magnet Portable Tesla Meter Handheld Gauss Meter
Product Numbers: GSME-8620
Product Specifications: Range: 200 mT,2000 mT
Product Unit: Permanent magnet surface measurement
Product Remark: Light weight and low power consumption
Product Class:Measuring and Testing Instruments > NDT Instruments > Gauss Meters
Product Details
【DateTime:2018-11-30 Browse:】【Font: Big Mid Small】【Print】【Close

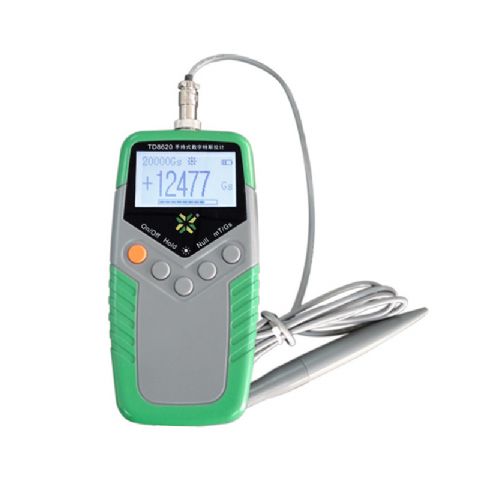

Magnet Portable Tesla Meter Handheld Gauss Meter

Part No:

  • GSME-8620A  Accuracy: 1%
  • GSME-8620B  Accuracy: 2%
  • GSME-8620C  Accuracy: 5%

Features:

    Dedicated to measuring the surface flux density of permanent magnet materials B, range: 0 to 2400 mT
  • The value can be switched by one button: mT (mite) or G (gauss).
  • With automatic zero and auto range, and maximum hold function.
  • With backlight adjustment, power display and automatic shutdown function.
  • Light weight and low power consumption
  • Acucracy: 2%

Application:

  • -Permanent magnet surface
  • -Mechanical component
  • -Speaker quality control
  • -magnetic separator working magnetic field measurement
  • -DC magnetic field source
  • -DC motor working magnetic Field.

Specification:

Level  technical specifications

Range 200 mT 2000 mT
Range of
measurements
0 ~ 120%  (2400mT)
Minimum resolution 10uT
Basic accuracy 1%, ±2%  5%
Number of digits
displayed
4 bits (Decimal)
Power supply one 9 V battery(battery not included)
Working temperature 0℃ ~ 50℃
Storage temperature -20℃ ~ 50℃
Shape size 160 mm × 80 mm × 32 mm
Device weight 260 g (including batteries and wires)
Hall probe Longitudinal Hall probe, wire length is about 2 meters
