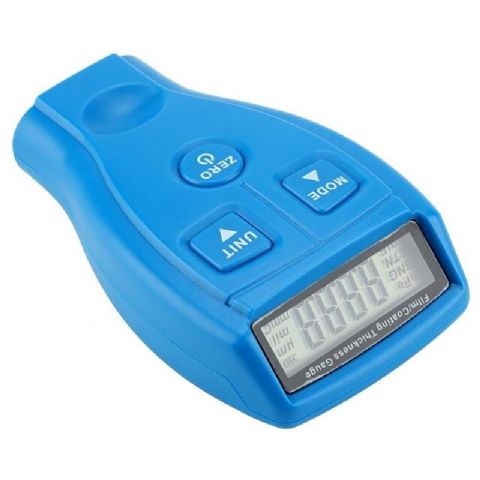

Automotive Car Painting Coating Thickness Gauge
Zoom Browse
Product Name: Automotive Car Painting Coating Thickness Gauge
Product Numbers: CTME-3200
Product Specifications: Display resolution: 0.01mm/1mil
Product Unit: Operating Temperature:0~40°C
Product Remark: Accuracy: ±0.1mm
Product Class:Measuring and Testing Instruments > NDT Instruments > Coating Thickness Gauges
Product Details
【DateTime:2019-05-15 Browse:】【Font: Big Mid Small】【Print】【Close

Automotive Car Painting Coating Thickness Gauge


Feature:

1.Target Measure: Non-metal coating thickness on the metal surface
2.Measuring Range: 0~1.80mm/0~71.0 mil nonmetal coating on metal surface
3.Accuracy: ±0.1mm
4.Power Supply: 2 x 1.5V AAA battery(Not included)
5.Minimum base diameter: 50mm
6.Critical base thickness: 0.5mm
7.Display resolution: 0.01mm/1mil
8.Operating Temperature:0~40°C
9.Operating Humidity: 10~95%RH
10.Dimensions: 61.98 x 30.57 x 104.99mm
11.Weight: 63.98g (without battery)

Model
Measurement range  0~-1.80mm/0~71.0mil
Car mode resolution  0.05mm/2mil
User mode resolution 0.01mm/1mil
Measurement error ±0.1mm
Minimum diameter of substrate  50mm
Minimum thickness of substrate  0.5mm
Temperature range  18~30°
Work humidity range  10~80%RH
Power 2*1.5VAAA batteries(Battery not included)
