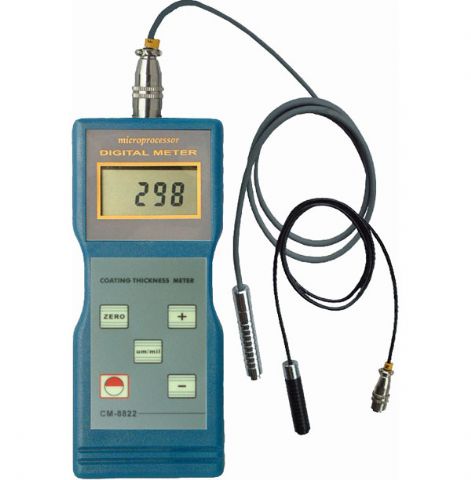

Coating Thickness Meter Painting Thickness Gauge
Zoom Browse
Product Name: Coating Thickness Meter Painting Thickness Gauge
Product Numbers: CM-8822
Product Specifications: Measuring range: 0-1000um/0-40mil
Product Unit: magnetic induction, eddy current
Product Remark: Display: 4 digits
Product Class:Measuring and Testing Instruments > NDT Instruments > Coating Thickness Gauges
Product Details
【DateTime:2016-10-19 Browse:】【Font: Big Mid Small】【Print】【Close
Coating Thickness Meter Painting Thickness Gauge
Specification:
  • Measuring range:0-1000um/0-40mil
  • Operating Principle: magnetic induction & eddy current (F & NF)
  • Resolution:*0.1 um(0-99.9um) , 1um (over 100um)
  • Accuracy: ±1-3%n or 2.5 um (Whichever is the greater)
  • Battery indicator: low battery indicator
  • With Metric/Imperial readings, mils and microns
  • Automatic or Manual shut down (power off)
  • Display: 4 digits, 10mm LCD
  • Power supply: 4 x 1.5V AA battery (UM3) (not included)
  • Operating conditions: 0-50°C Temperature, <80%RH Humidity

Packing List:
 1. Main Unit
 2. Probe (F Type / NF Type)
 3. Calibration Base Set (F Type / NF Type) CTG-BS
 4. Calibration Foils CTG-CF (1 set, 4 pieces)
 5. Carrying Case
 6. Operation Manual
Optional accessories:
 Other range 0~200um to 15000um
