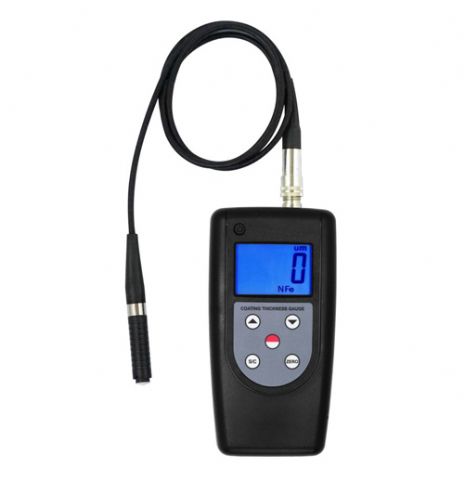

Thin Measuring Micro Coating Thickness Meter (N) For Plastic
Zoom Browse
Product Name: Thin Measuring Micro Coating Thickness Meter (N) For Plastic
Product Numbers: CTME-1210-200N
Product Specifications: Range: 0~200 μm/0~8mil
Product Unit: 4 digits LCD, backlit
Product Remark: Probe N for Plastic
Product Class:Measuring and Testing Instruments > NDT Instruments > Coating Thickness Gauges
Product Details
【DateTime:2016-10-27 Browse:】【Font: Big Mid Small】【Print】【Close
Thin Measuring Micro Coating Thickness Meter (N) For Plastic
Features:
-It meets the standards of both ISO2178 and ISO 2361 as well as DIN, ASTM andBS. It can be used both in the laboratory and in harsh field conditions.
-Specially for the thickness measurement of coating on small workpiece.
- The N probes measure the thickness of non - magnetic coatings on nonmagneticmetals. It is used on anodizing, varnish,paint, enamel, plastic coatings , powder,etc. applied to aluminum, brass, non -magnetic stainless steel, etc.
- Automatic substrate recognition.
- Manual or automatic shut down.
- Two measurement mode: Single and Continuous
- Wide measuring range and high resolution.
- Metric/Imperial conversion.
- Digital backlit display gives exactreading with no guessing or errors.
SPECIFICATIONS
-Display: 4 digits LCD, backlit
-Range: 0~200 μm/0~8mil(other range may be specified)
-Resolution: 0.1 μm
-Accuracy:±1~3%n or 2.5 μm or 0.1mil(Whichever is the greater)
-PC interface:with RS-232C interface
-Power supply: 4x1.5 AAA(UM-4)battery
-Operating condition:Temp. 0~40℃Humidity 10~90%RH
-Size: 140x72x34 mm5.5x2.8x1.3 inch
-Weight: about 215g(not including batteries)
Standard accessories:
  Carrying case ...................1 pc.
  Operation manual ............ 1 pc.
  N probe ............................1 pc.
  Calibration foils ..............1set.
  Substrate (Aluminum) ......1 pc.
Optional accessories:
  USB, RS-232C cable & software.
  Bluetooth data output & software
Note:
-Settings includes restoring factorysetting, unit setting, S/C setting,which should be done within 6seconds at every stage, or the gaugewill quit itself and keep its statusbefore.
-It is strongly recommended that nochanges should be made to the valueof Ln (controlled by power key, Ittakes about 14 seconds from startingdepressing Power key. Its value can bechanged by plus/minus key afterdisplaying Ln and releasing the powerkey. Store its value and quit by pressingZero key.) which will seriously affectthe accuracy
