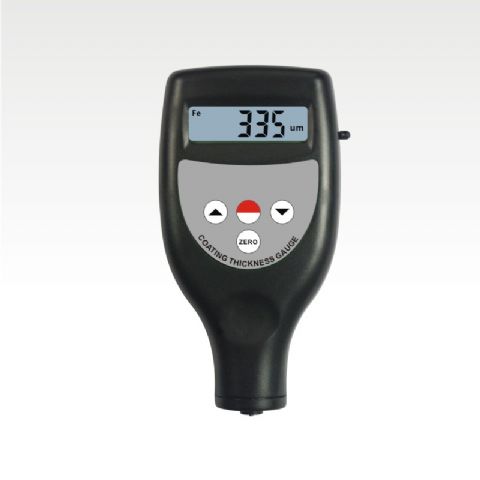

Coating Thickness Gauge(Meter)
Built-in inductive double function sensor.
Standard: ISO2178 and ISO 2361,DIN ASTM and BS
It can be used both in the laboratory and in harsh field conditions.
RS232C can communicate with PC computer for statistics and printing by the optional cable.
Digital back lit display gives exact reading with no guessing or errors.
Two measurement mode: single and continuous
Bluetooth (Optional)
Wide measuring range and high resolution
Automatic substrate recognition.
Manual or automatic shut down.
Technical Parametersspan>
Range :0~1250 um/0~50mil (other range may be specified)
Metric/ Imperial conversion
Resolution: 0.1 um (0~99.9um)/1 um (over 100um)
Accuracy:±1~3%n or 2.5 um or 0.1mil
Operating condition:Temp. 0~50 C/Humidity <95%
Power:2x1.5v 7# battery
Size:126x63x25mm
Product Configuration:
|
Standard configuration:
1. CTME-1002
2.Carrying case
3.Operation manual
4.F probe in built
NF probe in built
5.Calibration foils
6.Substrate (Iron)
7.Substrate (Aluminum)
|
|
Optional accessories: 1.Blue tooth
2.USB adaptor for RS-232C
3.RS-232C cable & software
|
Weight: 170g (Not including batteries)
