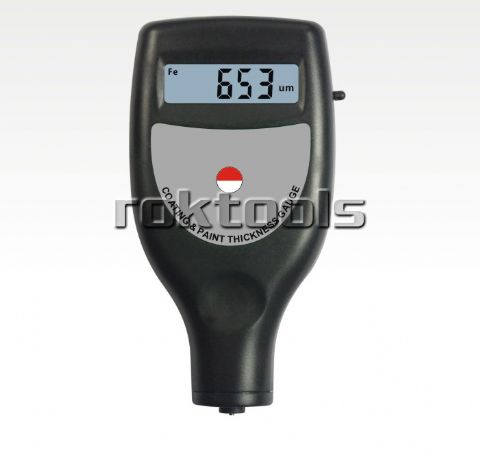

Coating Thickness Gauge (meter) with Bluetooth
Zoom Browse
Product Name: Coating Thickness Gauge (meter) with Bluetooth
Product Numbers: CTME-1001
Product Specifications: 0--1250um/0--50mil
Product Unit: resolution:0.1/1
Product Remark: Auto paint thickness meter
Product Class:Measuring and Testing Instruments > NDT Instruments > Coating Thickness Gauges
Product Details
【DateTime:2012-12-26 Browse:】【Font: Big Mid Small】【Print】【Close
Coating Thickness Gauge with Bluetooth
(F type) Magnetic induction:can measure the thickenss of non-magnetic coating layers on magnetic substrate, such as:(aluminum, chrome,copper, enamel,rubber,paint) on magnetic substrate (steel,iron,alloy and magnetic stainless steel)
(NF type)Eddy current: can measure the thickenss of nonconductive coating layers covered on nonferrous substrate such as:(enamel, rubber, paint,vanish,plastic,anodic-oxide layer)covered on nonferrous substrate (aluminum,brass,zinc,tin and nonmagnetic stainless steel)
Accuray: ±1~3%n or 2.5 um or 0.1mil
Resolution:0.1/1
measuring range: 0--1250um/0--50mil
Min.radius workpalce: F:Convex 1.5mm/Concave 25mm     N:Convex 3mm/Concave 50mm
Min.measuring area: 5mm
Min.sample thickness: 0.3mm
Metric/Imperial: convertible
Battery indicator: Low battery indicator
Power supply: 2*1.5v AAA(UM-4)
Auto switch off: YES
Dimension:125*65*27mm
Weight(not including battery): 81G
Package Weight:  1.0kg (2.205lb.)
Package: Main unit 1
                FN type probe  1
                F calibration base set  1
                N calibration base set  1
                calibration foil set         1 set(4 foils)
                Instruction manual        1
Optional Accessories: Cable&sofware for RS232C/USB interface
                                      Bluetooth
