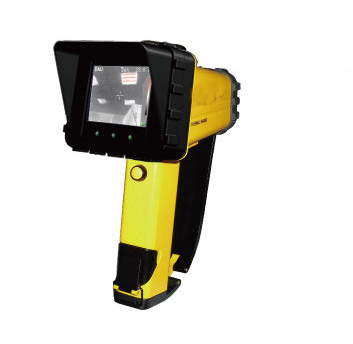

IP67 Thermal Imager Camera For Fire Fighting
Description:
This Imager camera is desiganed for fire fighters, The maintenance free uncooled microbolometer sensor produces clear and detail rich images of 160*120. But when fighting a fire, smoke can quickly rob us of that sense, essentially “blinding” us and handicapping our ability to perform effectively, find the seat of the fire and/or locate victims. Because of this, generations of firefighters have yearned to “see” through smoke—and now they can.
Main Features:
-- IP67 for scene of the fire
--With temperature measurement function
-- Unique fire-control color palette
-- Apply to fire rescue
-- Large LCD size
-- One key operation
Specification:
|
Item
|
Specification
|
|
THIM-5102
|
THIM-5103
|
|
Detector
|
Detector type
|
Uncooled FPA
|
|
Resolution
|
160×120
|
384×288
|
|
Image performance
|
FOV
|
30°×22.5°
|
40°×30.5°
|
|
Thermal sensitivity
|
≤0.1℃@30℃
|
|
Frame rate
|
50Hz
|
|
Focus
|
Fixed focus
|
|
Effective monitoring distance
|
≥50m
|
|
Spectral range
|
8-14um
|
|
Reboot time
|
Output thermal image≤25s@30℃
|
|
Image display
|
LCD screen
|
26 thousand color，3.5” TFT LCD，640×480
|
|
measurement
|
Measurement range
|
-20℃-+600℃
|
|
Measurement mode
|
Central fixed point
|
|
Measurement
|
Emissivity correction
|
Fixed emissivity
|
|
Color palette
|
6 colors
|
11 colors
|
|
Power supply system
|
Battery type
|
(NIMH) battery, rechargeable
|
|
Battery operating time
|
≥2 hours
|
|
Charging time
|
≤2 hours
|
|
Number of charging
|
500
|
|
Charging system
|
Intelligent charge
|
|
Environment
|
Operating temperature
|
-15℃-+50℃
|
|
Short timing operating temperature
|
+50℃-+260℃
|
|
Storage temperature
|
-40℃- +70℃
|
|
Encapsulation
|
IP67（1meter water immersion）
|
|
Flame retardant grade
|
UL94-V0
|
|
Drop resistance
|
1.0m
|
|
Physical characteristic
|
Weight
|
≤1.3Kg
|
|
Dimension
|
190mm×128mm×273mm
|
