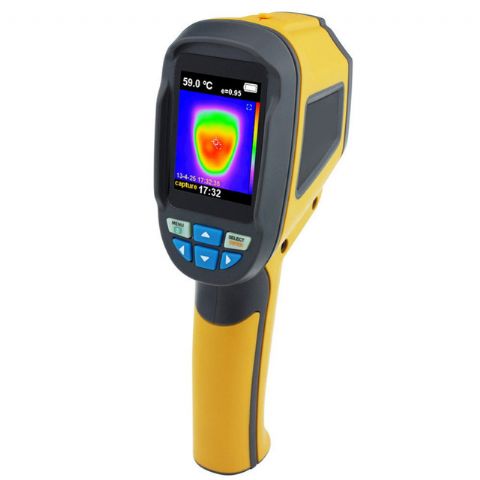

ROKTOOLS Cheap Thermal Vision Camera Infrared Thermal Imager
Features:
-Low cost and affordable
-Snesitive to heat
-8-14um wavelength
-Wide Range
-Resolution: 60*60
Specification
| Display |
Color display |
| Resolution |
60x60 |
| Total pixels |
3600 |
| FOV/Shortest focal length |
20°x20°/0.5m |
| Thermal sensitivity |
0.15°C |
| Measuring mode |
Infrared focal plane measuring temperature |
| Temperature range |
-20°C~300°C（-4F°~572°F） |
| Measuring accuracy |
2%/±2°C |
| Wavelength range |
8~14μm |
| Image frequency |
8Hz |
| Emissivity |
0.1-1.0Adjustable |
| Focus Mode |
Fixed |
| Palette |
Iron color, rainbow, black and white |
| Image Storage |
card(32G) |
| File Format |
JPG |
| Set control |
Unit Adjustment/Language/Date Time Format/automatic shutdown |
| Battery type |
3.7V rechargeable Lithium battery |
| Adapter voltage |
DC5 V output |
| Operating temperature |
0°C~50°C |
| Storage temperature |
-40°C~70°C |
| Humidity |
<90%RH |
| Vibration |
2G,IEC 60068-2-6 |
| Drop resistance |
2m |
| Size |
230x80x52mm |
| Weight |
410g |
