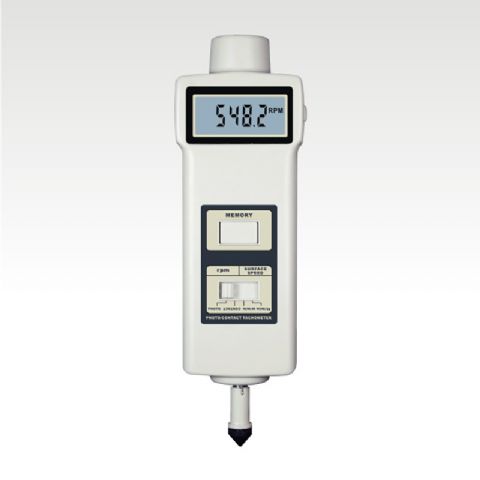

Digital Tachometer RPM Meter PHOTO TACH
The products is designed for measuring the rotation speed of a shaft or disk, as in a motor or other machine
Features:
* Large Clear LCD display
* Wide measuring range and high resolution.
* The last value / max. value / min. value will be automatically stored in memory.
* Multifunctional, one instrument combines PHOTO TACH. (RPM) & CONTACT TACH. (RPM , m/min., ft/min).
* The use of durable, long-lasting components, including a strong, light weight ABS-plastic housing assures elegant shape and ease of use.
Specification:
|
ring range
|
Laser : 2.5-99999r/min
|
Contact : 0.5-1999r/min
|
Surface: 0.05-1999.9 m/min ; 0.2-6560ft/min
|
Laser tach detecting distance
|
50-600mm
|
Accuracy
|
±（0.05%n+1d）
|
Resolution
|
0.01/0.1/1
|
Sampling time
|
1 s
|
Memory
|
max/min/last value
|
Battery indicator
|
low battery indicator
|
Power Supply
|
4x1.5v Um-4 Battery
|
Size
|
140x70x30 mm
|
Weight
|
130 g (Not including batteries)
|
Packing List:
|
Standard Accessories
|
Main Unit
|
|
Conical adapter
|
|
Round adapter
|
|
line speed wheel
|
Carrying Case
|
|
Operation Manual
|
