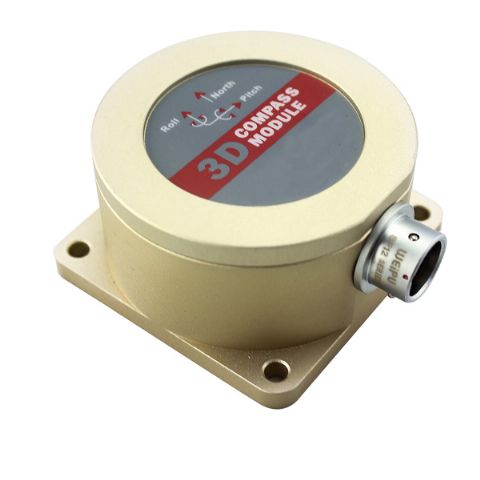

DICO-11320 a high precision 3D electronic compass using the 2D plane calibration algorithm, the calibration no need 3D posture tilt , just flat-situ rotation a circle to complete the calibration process.  Using USA patented technology of hard magnetic and soft magnetic calibration algorithm, make the compass eliminate the magnetic influence through calibration algorithm in the magnetic interference environment ,DICO-11320 integrated three-axis fluxgate sensor, in real time solver heading through the central processor, and using 3-axis accelerometer to proceed heading compensation for the wide range tilt angle, to ensure the compass still can provide high-precision heading data when the tilt angle up to ±85°.Electronic compass integrated high-precision MCU control, various output mode, standard interfaces including RS232/RS485/TTL and other interfaces, and accept other communication interface customization.
  DICO-11320 with small size, low power consumption, can be used for the antenna stability, vehicles, systems integration and other more fields , high shock resistance, high reliability makes the compass work properly in extremely harsh environments, and is more suitable for nowadays miniaturization military high-precision measurement integrated control system.

Features:

*Heading accuracy:0.5°~0.8°
*Tilt angle measuring range :±90°
*Tilt angle resolution: 0.1°
*Tilt angle accuracy: 0.1°
*Wide temperature : -40°C~+85°C
*Size: L60×W59×H29mm
*With hard magnetic ,soft magnetic and angle compensation
*DC 5V power supply
*Standard RS232/RS485/TTL output interface
* IP 67 protection class

Application :
*Satellite antenna search satellite
*Marine navigation surveying and mapping
*GPS integrated navigation
*Antenna servo control
*Gun emission system
*Infrared imager
*Laser range finder
*Map for plotter
*ROV underwater robot navigation
*Oceanography measurement instruments
*Special occasion robot
*Unmanned aircraft



Compass Heading Parameter	the Best heading accuracy	0.5°tilt<10°
		1°tilt<30°
		2°tilt<40°
		2.5°tilt<70°
	Resolution	1°
Compass Tilt Parameter	Pitch Accuracy	0.1°<15°(measuring Range)
		0.2°<30°(measuring Range)
		0.3°<60°(measuring Range)
		0.3°<85°(measuring Range)
	Pitch tilt Range	+/-85°
	Roll Accuracy	0.1°<15°(measuring Range)
		0.2°<30°(measuring Range)
		0.3°<60°(measuring Range)
		0.3°<85°(measuring Range)
	Roll tilt Range	+/-85°
	Resolution	0.1°
	Compass Tilt the best compensation Angle Range	<40°
Calibration	Hard Iron Calibrtion	yes
	Soft Iron Calibration	yes
	Magnetic Field interference calibration method	Plane rotation in 1 circle
Dimension	Size	60*59*29mm
	Weight	20g
Interface	RS232/RS485/TTL Interface connector	5 Pin connector
	Start Delay	<50MS
	Max output Rate	20Hz/s
	Communication Rate	2400 to 19200 baud
	Output Format	binary high performance protocol
Power	Power Supply	standard: DC+5V
		customized DC9-36V
	Current(max)	40mA
	Ideal mode	30mA
	Sleep mode	TBD
Environment	Operating Range	-40-~+85 degree
	Storage Temperature	-40-~+100 degree
	Resistance Shock performance	2500g
Electromagetic Compatibility	According to En61000 and GBT17626
MTBF	≥40000 Hours/ times
Insulation Resistance	≥100M
Shock Resistance	100g@11ms, 3times/Axis(half sinusoid)
Anti-Vibration	10grms, 10-100Hz
Weight	40g(without cable)
