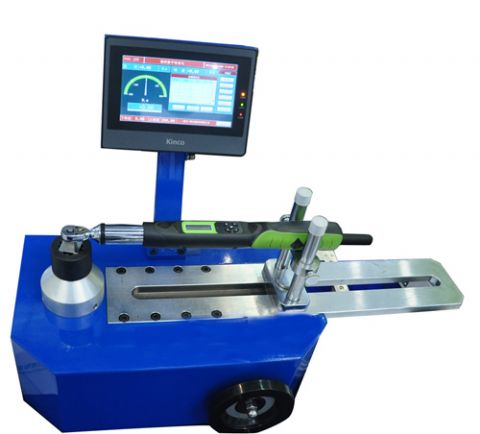

Large Range Torque Wrench Tester Calibration Gauge
Function and characteristics
- Newly designed High precision, high resolution, quick sampling speed, full-screen display.
- Color screen, touch screen, easy to operate.
- Meter display,curve display,curve zoom function and full touch screen display.
- With top quality torque sensor with torque direction display.
- Max and Min limit value setting, red indicating lights and buzzer audible and visual alarm. doubt indicators
- Three units convertible (N·m、kgf·cm、Lb·in).
- Real-time, peak, automatic peak three models of optional switch.
- System time for setting.
- With large storage capacity
Specifications
|
Model
Index
|
DTME-3651
|
DTME-3652
|
DTME-3653
|
DTME-3654
|
DTME-3655
|
DTME-3656
|
DTME-3657
|
| Measuring range/Division value |
N·m
|
100.0/0.01
|
200.00/0.01
|
300.00/0.01
|
500.00/0.01
|
1000.0/0.1
|
2000/0.1
|
3000/0.1
|
|
Kg·cm
|
1021.0/0.1
|
2042.0/0.1
|
3063.1/0.1
|
5105.2/0.1
|
10210/1
|
20420/1
|
30631/1
|
|
Ib·in
|
886.2/0.1
|
1772.4/0.1
|
2658.6/0.1
|
4431.1/0.1
|
8862/1
|
17724/1
|
26586/1
|
|
Dimension
|
880mm×350mm×550mm |
1250mm×500mm×800mm
|
| Length range |
130mm~750mm |
250mm-980mm
|
250mm-1800mm
|
| Angle of rotation |
0-60° |
0～360°
|
| Height stroke |
130mm |
150mm |
| Accuracy |
±1%
|
| Peak sampling frequency |
2000HZ |
| Power |
AC110-220V/50Hz-60Hz
|
| Net weight |
65Kg |
335kg
|
