Digital Pressuremeter Tension Tester
Zoom Browse
Product Name: Digital Pressuremeter Tension Tester
Product Numbers: TEGA-4001
Product Specifications: Load : 10KN-200KN
Product Unit: Resolution; 0.01-0.1KN
Product Class:Measuring and Testing Instruments > Force Measuring Instruments > China Tension Gauge
Product Details
【DateTime:2016-01-06 Browse:】【Font: Big Mid Small】【Print】【Close

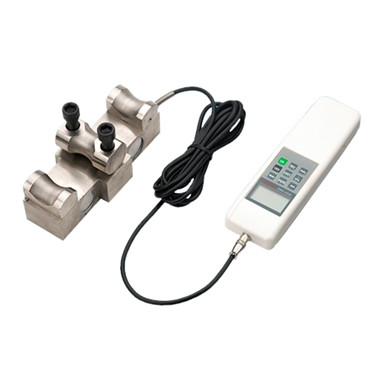

Digital Pressuremeter Tension Tester
       Description: Digital pressuremeter tension tester is a kindof special equipment to measure wind towers, signal transmission and power transmission systems rope tension. It has characters of high precision, easy to operate,easy to carry, etc. also it has many kinds of test modes, convenient to testing. Users can also input gravity acceleration value to make the test more accurately.
Characteristics
1: High precision, high resolution.
2: Five kinds of test modes, three kinds display modes---To improve test efficiency to the greatest extent.
3: N (Newton), kg (kg), lb (lb) three testing units for selection, mutual conversion.
4: Gravity acceleration setting function---Users can input the precise gravity acceleration value of testing place, make the testing and unit conversion more accurate.
5: Peak holding function---Maintain peak display until manual reset.
6: Automatic peak function---Maintain peak value can be removed automatically after 2 seconds.
7: Can set upper and lower limit value to make statistical analysis, the value more than comparative value, the alarm buzzer will alarm.
8: Data stored function, we can store 896 test values.
9: 10 minutes without operating automatic shutdown, green initiative.
10:High quality charging power,charge voltage from 240V to 100V, can adapt to domestic and foreign most areas,also have short circuit, leakage, overload protection function.
11: 2 sets of installation dimensions, adapt to domestic and foreign most test machines,convenient to installation and using.
12: Six digit Big screen display.

Type/Specification
TEGA-4001
TEGA-4002
TEGA-4005
TEGA-4010
TEGA-4020
Maximum load value
10KN
20KN
50KN
100KN
200KN
Load division value
0.01KN
0.01KN
0.01KN
0.1KN
0.1KN
0.001Mg
0.001Mg
0.001Mg
0.01Mg
0.01Mg
0.001Klb
0.001Klb
0.001Klb
0.01Klb
0.01Klb
Error of indication
+/-0.5%
+/-1.0%
Accuracy
According to the ropes characteristics of different forms, precision is the 2%-6% of the full range.
Unit
   N(KN)         Kg(Mg or T)     Lb(Klb)
Output interface
Rs232 Nine holes socket
Power
Rechargeable batteries   Battery voltage(100V-240V)
Sensor structure
S type or cylinder shape high-accuracy sensor (External)
Operating temperature
                   -20℃~+60℃
Transportation temperature

-20℃~+60℃
Relative temperature
                   10%-90% RH
Work environment
No seismic focus and corrosive medium around
Net weight
About 400g+weight of sensor
Size
230 X 66 X 36mm























Note: The package exclude force gauge
