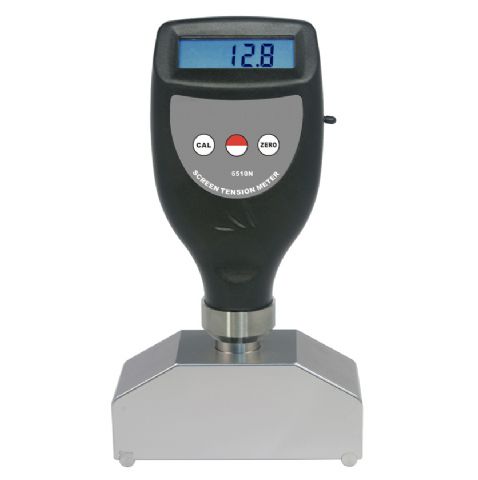

Digital Screen Tension Meter
* Suitable for general wire mesh tension and steel mesh tension measurement.
* Suitable for screen printing and screen stencil measurement, high accuracy. The ideal and necessary tool for production of precise screen and steel mesh. Can avoid the personal or tactile measurement error.
* LCD digital display, eliminating reading error.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
Specification:
| Measurement Range |
0~60 N/cm |
| Resolution |
0.1 |
| Accuracy |
±0.5 N/cm |
| Operating Environment |
Temperature: 0 ~ 40 ℃ Humidity: 10 ~ 90 %RH |
| Power Supply |
4 x 1.5 V AAA Size (UM-4) Battery |
| Demensions |
175 x 95 x 40 mm |
| Weight |
490 g (Not Including Batteries) |
Printing Task and Determination of Screen Tension
| Wire Mesh |
Printing Task |
Tension （N/cm） |
| Ultra High Tension Wire Mesh |
Circuit Board and Measuring Scale |
16~20 |
| High Strength Wire Mesh |
Multicolor and Four-Color Printing (Mechanical Printing) |
16~20 |
| High Precision Ultra Fine Wire Mesh |
High Precision Multi Layer Circuit Printing |
25~30 |
| High Precision Polyester Net (Standard Monofilament) |
Multicolor and Four-Color Printing (Manual Printing) |
8~12 |
| Ordinary Polyester Net (Standard Monofilament) |
Flat Object |
8~12 |
| Nylon Mesh |
Curve Surface or Rough Object |
8~12 |
