Mainly used in belt tension measurement, can also be applied to measure the tension of objects such as tapes, wires.Widely applied in industries of automobile, textile, cables, wires, plastic films, paper, printing.

Features:

* This Belt Tension Tester used the exclusive Micro-computer LSI circuit  and crystal  time base to offer high accuracy measurement.

* It can be used to measure and adjust the tension of timing and auxiliary belts fitted  to motor vehicles and other machines.

* Tension can be displayed in a variety of standard and manufacturers units.

* Tension limits can be set into the instrument, either manually or automatically.  During belt tension measurement and adjustment, the belt tension is displayed. A visual and audible indication of whether the tension is within or outside the set limits is also given. This avoids the user having to read the display whilst adjusting the belt.

* The selected tension limits, measurement units and calibration parameters are stored in The memory of the tester, and will be remembered even when the instrument is switched off and the batteries removed.

* Use “USB data output” and “RS-232 data output” to connect with PC.

* Provide “Bluetooth ™ data output” choice.



Display	4 Digits 10 mm LCD, With Colored LED Indication of High, Low and OK
Measurement Range	0 ~ 750 N ( Newtons )
	0 ~ 120 lb ( Pounds )
	0 ~ 77 kg ( Kilograms )
	0 ~ 114 Seems
Belt Width	Up to 36 mm
Overload Alarm	750 N
Maximum Load	850 N
Resolution	± 1 Newton or 1 Least Significant Digit of Other Units
Accuracy	± 5 % of full-scale
Data Output	USB, RS-232, Bluetooth
Audible Warning	Piezoelectric Sounder
Power Supply	4 x 1.5 AAA Size (UM-4) Battery
Dimensions	135 x 62 x 33 mm
Weight	335 g ( Not Including Batteries )

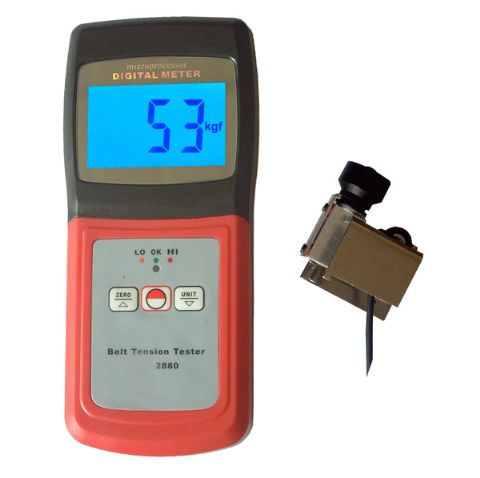

1. Main Unit

 2. Measuring Head

 3. Carrying Case

 4. Operation Manual

 1. USB, RS-232C data cable with software

 2. Bluetooth data out put with software
