Sound Level Meters UT351
Zoom Browse
Product Name: Sound Level Meters UT351
Product Numbers: UT351
Product Specifications: 30 to 130dB
Product Unit: Data Hold
Product Remark: China manufacturer, exporter
Product Class:Measuring and Testing Instruments > Environmental Test > Sound Level Meters
Product Details
【DateTime:2011-07-22 Browse:】【Font: Big Mid Small】【Print】【Close

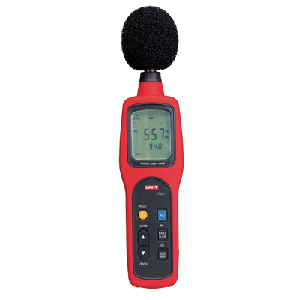

Sound Level Meters UT351




Measurement Functions
UT351
Total Range 30 to 130dB
Maximum Level 130dB
Accuracy ±1.5dB
Range Selections 30 to 80dB, 50 to 100dB, 60 to 110dB, 80 to 130dB
Frequency Range 31.5Hz to 8000Hz
Frequency Weighting A and C
Time Weighting FAST (125ms)
SLOW (1 second)
Analogue Bar Graph 30~130dB
Warning Over-Range “OVER”, Under-Range “UNDER”
Analogue Outputs AC: 0.707Vrms full scale; Output impedance: around 600Ω
DC: 2Vrms full scale; 10mV/dB; Output impedance around 100Ω
Max/Min Mode YES
Data Hold YES
Display Backlight YES
Sleep Mode YES
Low Battery Display 4.8V
GENERAL CHARACTERISTICS
Power 1.5V Battery (AA) x 4
LCD Size 53 x 41mm
Product Color Red and Grey
Product Net Weight 330g
Product Size 273 x 70 x 39mm
Standard Accessories Batteries, English Manual
Standard Individual Packing Gift Box
Standard Quantity Per Carton 30pcs
Standard Carton Measurement 670 x 385 x 300mm (0.077 CBM Per Standard Carton)
Standard Carton Gross Weight 18kg
