Portable PH Meter
Zoom Browse
Product Name: Portable PH Meter
Product Numbers: PHME-260
Product Specifications: Range: pH: (0.00~14.00)pH
Product Unit: mV: (-1800~1800)mV, Temp.: (0..0~60.0) Degree
Product Remark: back-light & LCD
Product Class:Measuring and Testing Instruments > Environmental Test > pH Meters
Product Details
【DateTime:2014-06-08 Browse:】【Font: Big Mid Small】【Print】【Close

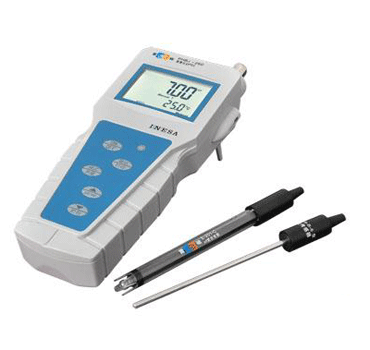

Portable PH Meter
Part No:PHME-260

Characteristics:
1.Blue back-light & LCD displaying;
2.Automatic & manual temperature compensation, automatic calibration;
3.Measurement results can be stored, deleted, searched and printed. It can store 250 sets of measurement data;
4.With low voltage display, automatic switching off, protection from electricity cutting off.;
5.One point or two points automatic calibration can be conducted on the meter with five types of pH buffer solution selected;
6.With RS-232 interface for connecting TP-16 printer using DC 1.0 software of data-collection to communicate with computers;
7.Users can measure the pH value of ultra-pure water, pure water and boiler water through adjustment of equipotential point to select special electrodes;
8.IP65 water-proof grade

Specifications:
1. Measurement range : pH: (0.00~14.00)pH
mV: (-1800~1800)mV
Temp.: (0..0~60.0) degree
2. Resolution:   pH:0.01pH,
                             mV: 1 mV
                             Temp.: 0.1 degree
3. Accuracy  pH: +/-0.01pH±ibit
                      mV: +/-1%(FS)±1bit
                      Temp.: +/-0.3 ℃±1bit
4. Input impedance:1 *10 12 Ω
5. Stability: +/-0.01pH ±1bit/3h
6. Temperature compensation range: 0.0~60 degree
7. The temperature of the measured solution:5~60 degree

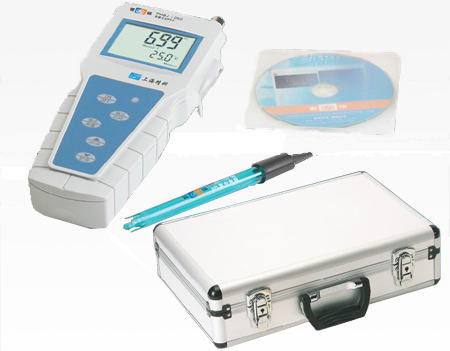

Standard Package:
1.Main instrument                              1;
2.AA Salinity Battery                            1;
3.PH Combined Electrode                1;
4.Suitcase                                            1;
5.PH4.00, 6.86, 9.18 Buffer               5 bags for each;
6.Data Collecting Software               1;
7.RS-232 Communication Line         1;
8.TP-16 Print Connection Line           1.

Overall dimension & weight:
Shipping package dimension:  355-335-135mm;
Gross weight:                        3kgs;
Net Weight:                             2kgs.
