Bench pH/mV/ISE/Conductivity/DO Meter
Zoom Browse
Product Name: Bench pH/mV/ISE/Conductivity/DO Meter
Product Numbers: PHME-551
Product Specifications: -1999.9mV ~ 0 ~ 1999.9mV
Product Unit: pX, mol/L, mg/L and ppm
Product Remark: pH/mV/ISE/Conductivity/DO Meter China
Product Class:Measuring and Testing Instruments > Environmental Test > pH Meters
Product Details
【DateTime:2011-12-21 Browse:】【Font: Big Mid Small】【Print】【Close

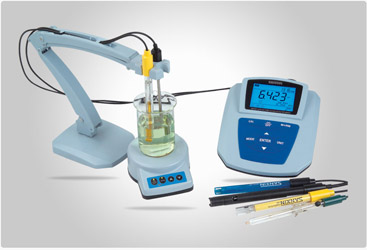

Bench pH/mV/ISE/Conductivity/DO Meter
For multi-parameter high precision measurement laboratory measuring instrument, covering the pH, ion concentration, conductivity and dissolved oxygen, more than 10 kinds of electrochemical parameters. Suitable for petroleum, chemical, pharmaceutical, power plants and environmental protection industries in the field of education and research more widely used.
Meter meets with the requirement of international GLP standards. Its features up to automatic calibration, automatic temperature compensation, data storage, timing measurement, clock display, RS-232 output, function setting and self-diagnose etc.

There are three different measurement modes: stable display mode; time measurement mode; continuous measurement mode.

Automatically recognize 13 kinds of pH buffer solution. User can choose anyone from four series of standard buffer solutions: Europe & USA series, NIST series, CHINA series and Self-defined series
High purified water and ammonia added purified water pH measuring mode can be set up, especially suitable for electric power and petrochemical industry
High purified water and ammonia added purified water pH measuring mode can be set up, especially suitable for electric power and petrochemical industry
Automatically recognize 8 kinds of conductivity standard solution. User can choose anyone from two series of solutions: Europe & USA series and China series.
Adopt advanced and original conductivity measurement technology, use 1 pc of conductivity electrode (K=1), it can meet measuring accuracy requirement for range within 0.5μS/cm ~ 200mS/cm by using only one-point calibration
Automatically select conductivity measurement range, when measuring high pure water, equipment automatically enter into temperature compensation of nonlinear model, especially for electricity, microelectronics and the pharmaceutical industry requirements
Dustproof and waterproof meter meets IP54 standards. All sockets are seal protected by the silica gel caps.
Equips new type of DO electrode which has function of automatic temperature compensation and automatic salinity compensation as well as automatic air pressure compensation inside meter to make DO measuring mode has temperature, air pressure and salinity automatic compensation, easy to use, accurate to measure.
Polarogram type DO electrode has special electrode calibration cap. Only needs 3 to 5 minutes for electrode polarization. Electrode adopts combination diaphragm cap which very convenient to use. Each DO electrode equips with three spare diaphragms caps
There are 10 kinds of common ions can be selected in the ion concentration measuring mode, user also can self-define other ions.
Can switch 4 kinds of concentration unit : pX, mol/L, mg/L and ppm
pH
Measuring range
Resolution
Accuracy
Input current
Input impendance
Stability
Temp. compensation range
(-1.999 ~ 19.999) pH
0.1/0.01/0.001 pH
Meter:±0.002 pH, connect meter with electrode:±0.01pH
≤1×10-12 A
≥3×1012 Ω
+/-.002 pH/3h
(0 to 100) ℃( automatic or manual)
mV
Measuring range(mV/ORP/EH)
Resolution
Accuracy
-1999.9mV ~ 0 ~ 1999.9mV
0.1mV
+/-.0.03% FS
Ion Concentration
Measuring range
Display unit
Accuracy
Temp. compensation range
0.00 ~ 14.00 pX
pX、mol/L、mg/L、ppm
Meter:+/-.0.5 % reading(monovalent), +/-.1.0 % reading (bivalent)
0 to 60 ℃(automatic or manual)
Conductivity
Measuring range





Resolution
Accuracy
Temp. compensation range
Electrode constant
Reference temperature
Conductivity:(0.00~20.00) μS/cm (20.0~200.0) μS/cm
(200~2000) μS/cm  (2.00~20.00) mS/cm
(20.0~200.0) mS/cm (200~2000) mS/cm(K=10)
Resistivity:(0 ~ 100) MΩ·cm
TDS:  (0 ~ 100) g/L
Salinity: (0 ~ 100) ppt
0.01/0.1/1μS/cm  0.01/0.1/1 mS/cm
Meter:+/-.0.5% FS,connect meter with electrode:+/-0.80% FS
(0 ~ 50) ℃(automatic ) 0.1 / 0.5 / 1 / 5 / 10 / 50 / 100  cm-1
25℃、20℃ and 18℃
Dissolved Oxygen
Measuring range
Resolution
Accuracy
Response time
Residual current
Temp. compensation range
Salinity compensation range
Air pressure compensation
Automatic calibration
Electrode type
(0 ~ 40.00) mg/L(ppm)  (0 ~ 200.0) %
0.1/0.01 mg/L(ppm)  1/0.1 %
Meter:+/-.0.10 mg/L, connect meter with electrode:+/-.0.40 mg/L
 ≤30 s(25℃, 90% response) ≤0.1 mg/L
(0 ~ 45) ℃(automatic) (0 ~ 45) ppt(automatic) (80 ~ 105) kPa(automatic) Air saturated by water; water saturated by air
Polarogram type
Temperature
Measuring range
Resolution
Accuracy
-10℃~ 110℃
0.1℃
5~ 60℃range:+/-.0.4℃  other range:+/-.0.8℃
Other Technical Parameters:
Data storage
Storage content

Power
Communication connector
Size and weight
Quality and safety certification
300 groups
Measuring value series number, measuring value, temperature, ATC or MTC state, measuring date and time
DC9V/300mA
RS232
160 × 190 × 70mm/880g
ISO9001:2008, CE and CMC
Working Condition
Environment temperature
Environmental humidity
IP rating
5 ~ 35 ℃(0.01grade) 15 ~ 30 ℃(0.001grade)
≤75%
IP54 Dustproof and waterproof

1. Model  pH/mV/ISE/Cond/DO meter 1set
2.  flexible electrode holder 1pc
3.  intelligent stirrer 1set
4.  plastic pH/ATC three-in-one combination electrode 1pc
5. glass pH combination electrode 1pc
6.  temperature electrode 1pc
7.  conductivity electrode 1pc
8.  DO electrode 1pc
9.  double salt bridge reference electrode 1pc
10. pH standard buffer solution(pH4.00、pH6.86、pH9.18/50ml) 1btl/each
11. 1413μS/cm conductivity standard solution (50 mL) 2btls
12. 9V power adapter (meter use) 1pc
13. 6V power adapter (stirrer use) 1pc
14 membrane cap (DO electrode use) 3pc
15.  DO electrode inner solution (30 mL) 1btl
16. Cathode polishing paper 2pcs
17.  stirring bead 3pcs
18. AA battery 4units
19. RS-232 communication cable 1pc
20.  communication software disk 1pc
21. Operation manual 1unit
22. Brief operation instruction 1unit
23. Packing List 1p
