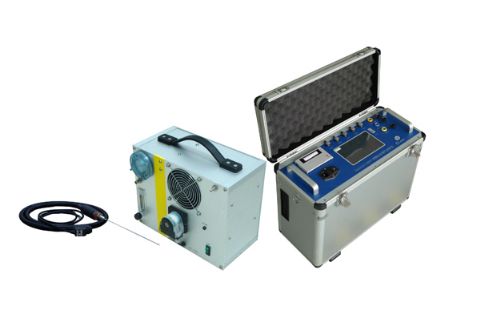

Portable Infrared Flue Gas Analyzer
Zoom Browse
Product Name: Portable Infrared Flue Gas Analyzer
Product Numbers: INGA-12006
Product Specifications: Micro-flow NDIR
Product Unit: PID temperature control
Product Remark: Built-in sampling pump and peristaltic pump
Product Class:Measuring and Testing Instruments > Environmental Test > Infrared Gas Analyzer
Product Details
【DateTime:2014-09-15 Browse:】【Font: Big Mid Small】【Print】【Close
Portable Infrared Flue Gas Analyzer
Description:
         used to measure concentration of SO2 ,NO ,CO ,CO2 and O2 from stack or boiler emission gases, in which SO2 ,NO ,CO and CO2 are measured by micro-flow infrared sensors and O2 by electrochemical sensor (optional paramagnetic detector O2 sensor), with optional gas temperature, pressure, velocity etc, calculating combustion efficiency, lambda and so on.
Application:
       The general applications are combustion and emission control research or certification of Continuous Emission Monitoring System (CEMS), combustion efficiency monitoring for various industrial furnaces or refuse incinerator and boiler.
Features:
1.  Efficient Peltier dehumidifiers for humidity measurement of low concentrations.
2.  NOX converter (optional).
3.  PID temperature control.
4.  Needle valve flow control.
5.  Built-in sampling pump and peristaltic pump.
Technical parameters:
1.  Condensing temperature: 4°C, can be set
2.  Heating temperature: 160 °C, can be set
3.  Sampling flow: 1-5L / min (adjustable)
4.  NOX conversion efficiency: above 96%
5.  Power supply: 220VAC
6.  Dimensions: 515mm * 175mm * 225mm
7.  Weight: 7.5kgs
3) Sampling probe with heated tube
Specification:
 1) Portable infrared flue gas analyzer

Components

Measure Method

Range

Resolution

Precision

Repetition Error

SO2

Micro-flow NDIR

2000PPM

1PPM

≤1%

≤1%

NO

Micro-flow NDIR

2000PPM

1PPM

≤1%

≤1%

CO

Micro-flow NDIR

5000PPM

1PPM

≤1%

≤1%

CO2

Micro-flow NDIR

25%

0.01%

≤1%

≤1%

O2

Electrochemistry

25%

0.01%

≤3%

≤2%

Note: Measurement range can be customized by the requirement.


Specification of Temperature Measured:

Parameter

Measure Method

Measure Range

Resolution

Precision

Flue GasTemperature

Thermocouple

-10~600 degree

1 degree

±2 degree

Ambient AirTemperature

Thermistor

-10~100 degree

1 degree

±1 degree

Specification of pressure measured:

Parameter

Measure Method

Measure Range

Resolution

Precision

Diff. Pressure

Silicon Diff.Pressure Chip

-50hPa~50hPa

1Pa

±2Pa or ±5%rel

Ambient Pressure

Silicon Pressure Chip

70kPa~120kPa

0.01kPa

±0.5kPa or ±2%rel



Other parameters:

Response Time(TD+T90)

<10 seconds (NDIR)

Warm-up Time

30 minutes

Communication Interface

RS232/RS485

Work Temperature

0~50℃

Relative Humidity

5~85%

Ambient Pressure

86~108kPa

Power Source Supply

AC 220±10%V 50Hz±1Hz

Dimension

450mm×350mm×180mm(Width×Length×Height)

Weight

9.5kg




Sampling probe with heated tube

Features:
1. Integrate heated sampling probe and sampling hose.
2. Built-in heated filter, prevent sampling loss.
3. Max working temperature 200℃.
4. Smart design, safe and reliable.
Technical parameters:
1. Filter element: 2μm
2. Length: 3m (can be customized)
3. Power supply: 220V AC
4. Power consumption: 330W
5. Environmental temperature: -40℃-140℃
6. Weight: 3kg
