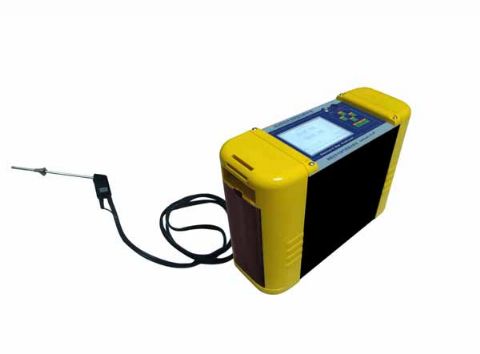

Portable NDIR Infrared Flue Gas Analyzer for CO ,CO2 ,O2 ,SO2 ,NO2 ,NO
Description:
Comprehensive portable flue gas analyzer adopts the international advanced NDIR non-dispersed infrared technology and electrochemical techniques to measure the volume concentration of CO ,CO2 ,O2 ,SO2 ,NO2 ,NO and other gases in flue gas and to figure out excess air coefficient. This product has high precision, small volume, it is convenient to carry, simple to operate and it is extensively applied in steel, chemical, energy conservation monitoring, energy efficiency evaluation and other fields.
Who need this instruments:?
Combustion and emission control research or certification of Continuous Emission Monitoring System(CEMS), combustion efficiency monitoring for various industrial furnaces or refuse incinerator and boiler.
Features:
1. Simultaneous measurement of O2 ,SO2 ,CO2 ,CO low ,CO high ,HC ,NO ,H2S（optional,NO2(optional) optional T, P, Flow.
2. NDIR-technology to measure CO high, CO2 and HC.
3. Maximum measure 9 gases: six ECD sensors and three NDIR sensors.
4. Auto ZERO function.
5. Built-in pump.
6. Calculation of Lambda and combustion efficiency.
7. LCD 320 x 240 display and RS232 digital output.
8. Weight: 6.5Kgs.
Specifications:
|
Components
|
Methods
|
Normal
|
Min Range
|
Max Range
|
Resolution
|
Accuracy
|
|
O2
|
Electrochemistry
|
0-25% vol
|
0-25% vol
|
0-100% vol
|
0.01%
|
±2%
|
|
CO low
|
Electrochemistry
|
0-4000ppm
|
0-100 ppm
|
0-9999 ppm
|
1ppm
|
±2ppm
±10ppm
|
|
SO2
|
Electrochemistry
|
0-2000ppm
|
0-100 ppm
|
0 -4000 ppm
|
1ppm
|
±2ppm
±5ppm
|
|
NO
|
Electrochemistry
|
0-2000ppm
|
0-100 ppm
|
0 - 4000 ppm
|
1ppm
|
±2ppm
±5ppm
|
|
NO2 Optional
|
Electrochemistry
|
0-200ppm
|
0-100 ppm
|
0 -1000 ppm
|
1ppm
|
±2ppm
±5ppm
|
|
H2S Optional
|
Electrochemistry
|
0-1000ppm
|
0-200ppm
|
0- 1000 ppm
|
1ppm
|
±2ppm
±5ppm
|
|
CO high Optional
|
NDIR
|
0-10% vol
|
/
|
/
|
0,01 %
|
±0,05%
|
|
CO2
|
NDIR
|
0-25% vol
|
/
|
/
|
0,01 %
|
±0,05%
|
|
HC
|
NDIR
|
0-9999ppm
|
/
|
/
|
1ppm
|
±10ppm
|
|
Note: The measured components and range can be customized.
|
|
Specification of Temperature Measure
|
|
Parameter
|
Method
|
Measure Range
|
Resolution
|
Precision
|
|
Flue Gas Temperature
|
Thermocouple
|
0~800℃
|
1℃
|
±3℃
|
|
Ambient Air Temperature
|
Thermistor
|
0~99℃
|
1℃
|
±1℃
|
|
Other specifications
|
|
Communication Interface
|
RS232
|
|
Work Temperature
|
5～45℃
|
|
Relative Humidity
|
5～85%
|
|
Ambient Pressure
|
86～108kPa
|
|
Working power
|
AC 90V-240 50Hz±1Hz
|
|
Dimension
|
438 X 290 X 152mm（W×L×H）
|
|
Weight
|
About 6.5kg
|
