Combustible Gas Leak Detector
Zoom Browse
Product Name: Combustible Gas Leak Detector
Product Numbers: GADE-8800A
Product Specifications: Alarm: 20Hz ~ 5KHz
Product Unit: Adjustible sensitivity
Product Remark: Japan sensor Applied
Product Class:Measuring and Testing Instruments > Environmental Test > Gas Detector
Product Details
【DateTime:2014-07-20 Browse:】【Font: Big Mid Small】【Print】【Close

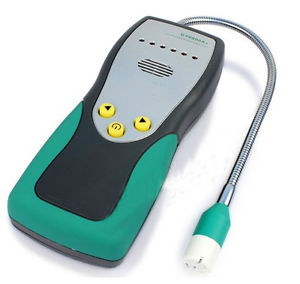

 Combustible Gas Leak Detector
Part No: GADE-8800A
Descriptions:
GADE-8800A  is an extremely useful tool in any environment where gasoline, propane, natural gas, fuel oil and many other explosive gases may be present.
As a combustible gas or vapor source is approached, an audible signal increases in frequency and the red lights illuminate in sequence, to show the intensity of the leak. Now you can see and hear your way to pinpointing dangerous leaks. The unique flexible probe gives you access to gas leaks in hard to reach places.
Main Features:
•CNEX: Ex ib IIB T4 Gb
•Japan sensor Applied
•Audible signal ticker and visual leak size indicator
•Adjustible sensitivity
•Cordless operation
•Anti-explosion 3.7V 1500mAH Li-ion battery equipped
•Instant sensor check to insure sensor in proper working state
•Easily check the status of alarm devices(buzzer, LEDs)
•Fast warm up
•Low battery indicator

MODEL

GADE-8800A+

Detection

natural gas, LPG, artificial goal gas and etc..

Sensor

planar semiconductor

Warm up time

less than 60 seconds

Alarm

20Hz ~ 5KHz

Range of alarm

~1% LEL LED1 flashing, without buzzer

~2% LEL LED2 flashing, with buzzer

~5% LEL LED3 flashing, with buzzer

~10% LEL LED4 flashing, with buzzer

~20% LEL LED5 flashing, with buzzer

Alarm mode

LED, buzzer

Working temperature

-20C ~ 70C

Working humidity

less than 90% RH

Power source

Li cell 3.7V 1100mA/h

Indication of charge

10% red LED1

20% red LED2

30% red LED3

40% red LED4

50% red LED5

Indication of sensitivity

Level 0, red LED3

Level -1, red LED2

Level -2, red LED0

Level +1, red LED4

Level +2, red LED5

Dimension

275 * 70 * 30 mm

Weight

approx. 220g

Package
