Portable pH/Conductivity Meter
Zoom Browse
Product Name: Portable pH/Conductivity Meter
Product Numbers: PHME-723
Product Specifications: (-2.00 ~ 19.99)pH
Product Unit: PH, OPR, conductivity
Product Remark: China conductivity meter manufacturer
Product Class:Measuring and Testing Instruments > Environmental Test > Conductivity Meter
Product Details
【DateTime:2013-12-19 Browse:】【Font: Big Mid Small】【Print】【Close

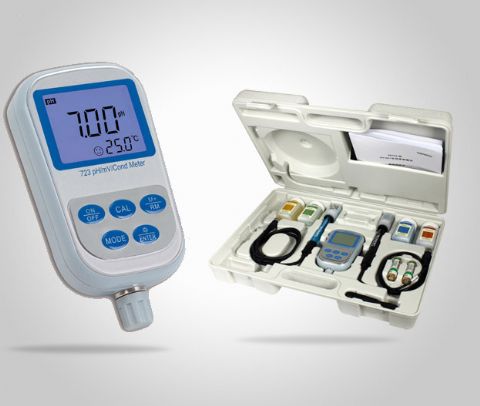

 Portable pH/Conductivity Meter
Measurement of parameters such as pH, mV, conductivity, TDS, salinity, resistivity and temperature of water solution, the most cost effective portable analytical instrument
Main Features:
1. Automatic identification of 8 conductivity standard calibration solutions, two options of standard calibration solutions: Europe and America series and China series.
2. Meter meets IP57 rating, equipped with calibration solution and portable case.
3. Double-parameter meter, equipped with pH electrode and conductivity electrode, automatic identification of electrode by meter.
4. Able to set pH measurement modes of high purity water and pure water with ammonia.
5. Adopt advanced conductivity measurement technology, use conductivity electrode of constant K=1, only need one point calibration and meet the measurement precision requirement of 0.5μS/cm ~ 200 mS/cm.
6. Ability to switch among conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full scale.
7. Conductivity measurement mode has the function of non-linear temperature compensation for high purity water.
8. Built-in microprocessor chips, intelligent functions such as automatic calibration, automatic temperature compensation, data storage, function set-up, self-diagnose information, automatic power-off and low voltage display.
9. Automatic identification of 13 pH standard buffer solutions, three options of standard buffer solutions: Europe and America series, NIST series and China series.
Specifications:
Category Product Name Basic features and specifications
PH

Measuring range

(-2.00 ~ 19.99)pH

Resolution

0.1/0.01 pH

Accuracy

Meter:+/-0.01pH; Overall: +/-0.02pH

Input current

≤2*10-12 A

Input impendance

≥1*1012 Ω

Stability

+/-0.01 pH/3h
Temp. compensation range (0 ~ 100)℃(automatic)
ORP

Measuring range (mV/ORP/EH)

-1999mV ~ 0 ~ 1999mV

Resolution

1mV

Accuracy

Meter:+/-0.1% FS, Overall: +/-15mV
Conductivity Measuring range Conductivity:(0.00~19.99)μS/cm (20.0~199.9)μS/cm (200~1999)μS/cm (2.00~19.99)mS/cm (20.0~199.9)mS/cm TDS: (0 ~ 100)g/L Salinity (0 ~ 100)ppt Resistivity:(0 ~ 100)MΩ·cm

Resolution

0.01/0.1/1μS/cm 0.01/0.1 mS/cm
Accuracy Meter:+/-1.0% FS, Overall:+/-1.5% FS

Temp. compensation range

(0 ~ 50)℃(manual)

Electrode constant

0.1 / 1 / 10 cm-1

Benchmark temperature

25℃,20℃ and 18℃
Other Technical Parameters

Data storage

200 groups
Storage content Series number, measuring value measuring unit and temperature,

Power

Two AA batteries (1.5V *2)

Size and weight

meter:(65×120×31)mm/180g: Suitcase: (360×270×76)mm/1.6Kg
Quality and safety certification ISO9001:2000, CE and CMC
Working Condition

Environment temperature

5 ~ 35 ℃(0.01grade)

Environmental humidity

≤85%

IP rating

IP57 Dustproof and waterproof
Standard package:
1. Model 723 pH/mV/Conductivity meter 1unit
2. 201T-S plastic pH/ATC three-in-one combined electrode 1pc
3. 2301-S plastic conductivity electrode 1pc
4. pH standard buffer solution(pH4.00, pH7.00 and pH10.01/50mL)  1btl/each
5.1413μS/cm conductivity standard solution (50mL) 1pc
6.Screw driver 1pc
7. Spare AA batteries 2pcs
8. Operation manual 1pc
9. Carrying case 1 unit
