Handheld Portable Spectrum Analyzer
SPAN-1003 series spectrum analyzer has excellent performance in technical indicators compare with current spectrum analyzer in market. 6.5 inch TFT screen, Pc connection for display as convenience as the desktop spectrum analyzer, also can be integrated into your system to develop a spectrum analysis.
New design of SPAN-1003 modular bring convenience for user while saving costs.
Universal USB, LAN connection are easy for machine measurement. With complete SCPI command set, quick set up and upgrade integrated test system.
Features
- Provided most handheld spectrum analyzer test function with superior technical index
- Frequency range: 9kHz~7.5GHz
- Optimum sensitivity: -153dBm
- Resolution bandwidth: 1Hz~3MHz
- AM/FM demodulation, frequency count
- 100kHz~1.5GHz tracking generator
- 6.5 inch highlight TFT color LCD
- 6000mAH li-ion battery, up to 4 hours durable used.
- Structure Size: 288x182x142mm
- PC control software easy to save and manage test data.
- Weight: less than 3kg

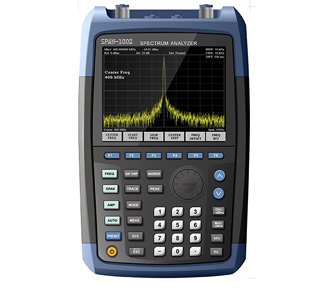

SPAN-1003 Hand-held spectrum analyzer module
Product Information
SPAN-1003 series spectrum analyzer has excellent performance in technical indicators compare with current spectrum analyzer in market. 6.5 inch TFT screen, Pc connection for display as convenience as the desktop spectrum analyzer, also can be integrated into your system to develop a spectrum analysis.
New design of SPAN-1003 modular bring convenience for user while saving costs.
Universal USB, LAN connection are easy for machine measurement. With complete SCPI command set, quick set up and upgrade integrated test system.
Features
l Provided most handheld spectrum analyzer test function with superior technical index
l Frequency range: 9kHz~7.5GHz
l Optimum sensitivity: -153dBm
l Resolution bandwidth: 1Hz~3MHz
l AM/FM demodulation, frequency count
l 100kHz~1.5GHz tracking generator
l 6.5 inch highlight TFT color LCD
l 6000mAH li-ion battery, up to 4 hours durable used.
l Structure Size: 288x182x142mm
l PC control software easy to save and manage test data.
l Weight: less than 3kg
Technical index
|
Frequency range
|
9kHz~7.5GHz
|
|
Frequency resolution
|
1Hz
|
|
Frequency readout accuracy
|
±（frequency marker count*frequency benchmark precision+1%*sweep width+10%*RBW+0.5*[sweep width/（sweep point-1）]+1Hz）
|
|
Internal standard（10MHz）
|
Aging rate
|
<1ppm/year
|
|
Temperature stability
|
<0.5ppm （15Degree~35Degree）
|
|
Resolution bandwidth
|
|
range
|
|
1Hz~500kHz（from 1 to 10 serial stepping），1MHz，3MHz
|
|
selectivity(60dB/3dB)
|
RBW≤500kHz
|
<5: 1 typical value
|
|
accuracy
|
<5% typical value
|
|
Vedio bandwidth（VBW）
|
|
10Hz~3MHz
|
|
Displayed average noise level （10Hz Resolution bandwidth，radio-frequency attenuator 0dB）
|
|
frequency
|
Pre-amplifier off
|
Pre-amplifier pen
|
|
100kHz-1MHz
|
-95dBm
|
-110dBm
|
|
1MHz-10MHz
|
-125dBm
|
-140dBm
|
|
10MHz-2GHz
|
-133dBm
|
-148dBm
|
|
2GHz-3.4GHz
|
-130dBm
|
-143dBm
|
|
3.4GHz-5GHz
|
-133dBm
|
-145dBm
|
|
5GHz-7.5GHz
|
-127dBm
|
-138dBm
|
|
Phase noise
|
|
|
|
Frequency offset 30kHz -80dBc/Hz
|
|
|
|
Frequency offset 100kHz -90dBc/Hz
|
|
|
|
Frequency offset 1MHz -110dBc/Hz
|
|
Sweep time
|
|
Sweep width 100Hz≤SPAN≤7.5GHz
|
|
10ms~3000s
|
|
0 sweep width
|
|
1ms~3000s
|
|
Sweep mode
|
|
Serial, single
|
|
The trigger
|
|
Trigger source
|
|
Free, video, external
|
|
External trigger level
|
|
5V TTL level, the nominal value
|
|
Frequency counter
|
|
resolution
|
|
1Hz、10Hz、100Hz、1kHz
|
|
Uncertainly angle
|
|
Frequency count*frequency benchmark accuracy +counter resolution
|
|
Range frequency（20Degree~30Degree）
|
|
Synthetical range frequency（90%）
|
Input single range 0dBm~-50dBm
|
±1.5dB
|
|
range
|
|
Maximum permissible input
|
average continuous power
|
+23dBm
|
|
Maximum input dirct current voltage
|
|
50Vdc
|
|
Input attenuator range
|
|
0~30dB，3dBstepping
|
|
1dBpoint of compression
|
|
+10dBm
|
|
Stray and residual response
|
|
TOI（CTB）
|
>30MHz
|
+15dBm
|
|
SHI（cos)
|
|
+40dBm
|
|
Input related stray single
|
|
<-60dBc
|
|
residual response
|
|
<-85dBm
|
|
Trancing source(optional)
|
|
Frequency range
|
|
100kHz~3.2GHz
|
|
Output power
|
|
-30dBm ~ 0dBm 1dBstepping
|
|
Output flatness
|
|
±3dB
|
|
Demodulation (optional)
|
|
Audio demodulation
|
frequency range
|
100kHz - 7.5GHz
|
|
|
Demodulation type
|
FM/AM
|
|
AM measurement
|
frequency range
|
10MHz - 7.5GHz
|
|
|
modulation rate
|
20Hz - 100kHz
|
|
|
Modulation rate accuracy
|
1Hz modulation rate, nominal value (modulation rate of <1kHz)
<0.1% modulation rate, nominal value (modulation rate ≥ 1kHz)
|
|
|
modulation depth
|
5%-95%
|
|
|
Modulation rate accuracy
|
± 4%, nominal value
|
|
FM measurement
|
frequency range
|
10MHz-7.5GHz
|
|
|
modulation rate
|
20Hz-100kHz
|
|
|
Modulation rate accuracy
|
1Hz modulation rate, nominal value (modulation rate of <1kHz)
<0.1% modulation rate, nominal value (modulation rate ≥ 1kHz)
|
|
|
Frequency deviation
|
20Hz-200kHz
|
|
|
Frequency accuracy
|
± 4%, nominal value
|
|
common parameter
|
|
Radio requency input/output
|
|
SMA female（50Ω）
|
|
USB
|
|
USB 1.1（equipment side）
|
|
LAN
|
|
10/100 Base-T，RJ-45connector
|
|
AM/FM demoduline
|
|
|
|
Benchmark input/out put
|
10MHz，BNC female
|
Input power 0dBm~ +10dBm
|
|
output 0dBm±2dB
|
|
Maximum size
|
|
288*182*142mm
|
|
weight
|
|
Less than 3kg
|
|
Operating temperature
|
|
0Degree~40Degree
|
|
Storage temperature
|
|
-40Degree~+70Degree
|
|
power
|
battery
|
|
7.4V 6000mAh
|
|
adapter
|
input
|
100V~240V 50/60Hz 1.5A
|
|
output
|
9V 4000mA
|
|
Power consumption
|
|
13W
|
|
Inside data storage
|
|
128MB
|
|
Upper computer software
|
USB、LAN
|
Pc display test
|
