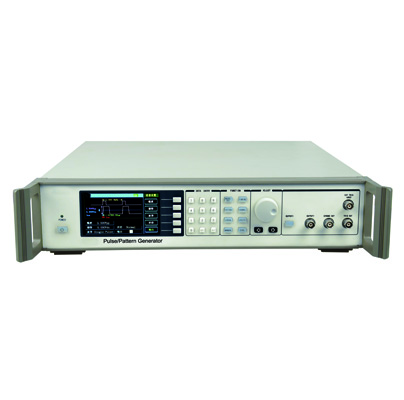

Dual Channel Channel Pulse/Pattern Generator

Product Name: Dual Channel Channel Pulse/Pattern Generator

Product Numbers: FUGE-5302

Product Specifications: Pulse cycle range: 20ns ~ 10000s

Product Unit: Pulse rising/falling time: 8ns ~ 1ms

Product Remark: Dual channels

Product Class:Measuring and Testing Instruments > Electronic test Instruments > Pulse/Pattern Generator

Product Details

【DateTime:2015-05-29 Browse:】【Font: Big Mid Small】【Print】【Close】

Dual Channel Channel Pulse/Pattern Generator

Specifications:

Channel Dual channels

Pulse Pulse rising/falling time: 8ns ~ 1ms

Accuracy: ±10％＋3ns

Time
         Pulse cycle range: 20ns ~ 10000s
         Time interval range: 5ns ~ 10000s
         Resolution: 5ns( low range)     10μs(high range)
         Time interval error: ±(T×5×10-5+ 5ns) (low range); ±(T×5×10-5+ 10μs) (high range)

Amplitude Offset
Amplitude range: 50mVp ~ 5Vp (50Ω matched)

Offset range: ± (50Mv ~ 5V) (50Ω matched)

Pattern length: 4096bits/output from channel and channel selected
Format: NRZ(non-return-to-zero)
Pattern rate: 100mHz ~ 50MHz
Resolution: 0.1Hz
Pattern frequency accuracy: ±(T×5×10-5+100mHz)

Trigger
         Trigger mode: internal, external, manually
         External trigger input: frequency: 1Hz ~ 10MHz(square) amplitude: 1Vp-p ~ 20Vp-p
          Input impedance: ≥100kΩ

Burst
Burst count: 2 ~ 65000 cycles Burst mode: continuous, single

Exterior Standard Frequency Input
Frequency: 10MHz
Amplitude: ≥0.5Vrms

Power
           AC220V(1±10％), 50Hz(1±5％)

Dimension and weight
         Dimension: 330 ×155 ×300 mm
          Weight: Approx.4.2kg
